Accessing Mounting Bolts On an Inoperative Power Seat

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

General Equipment

Drill(s)

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
NOTE: Typical driver seat shown in illustration, other seats similar.
  1. If equipped.

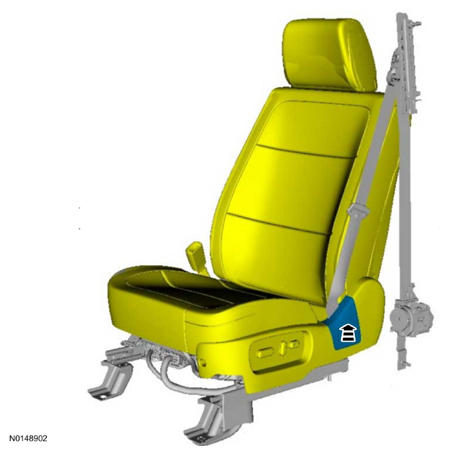

    G08625901
  2. If equipped.

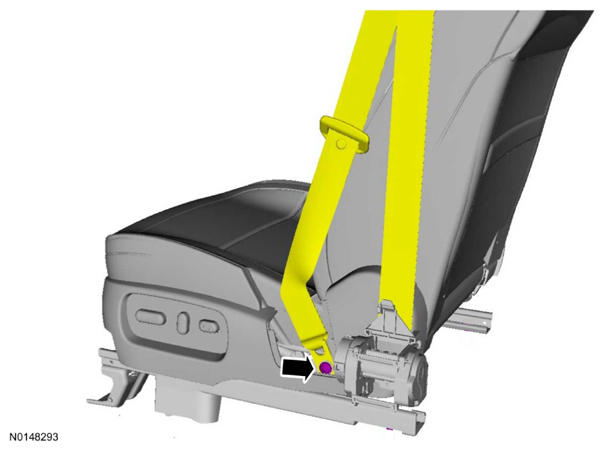

    G08625902

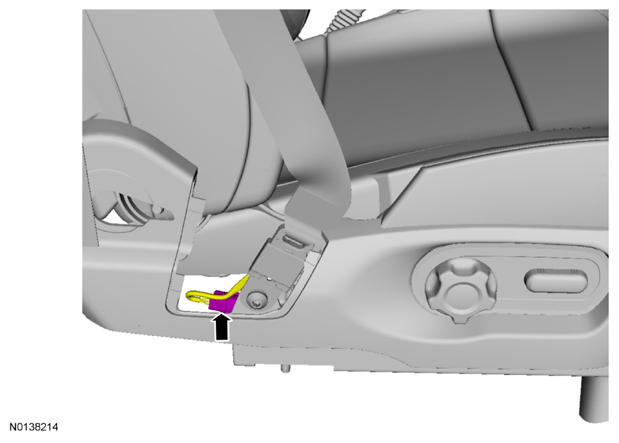

  3. If equipped, passenger seat.
    G08625903
  4. G08625904

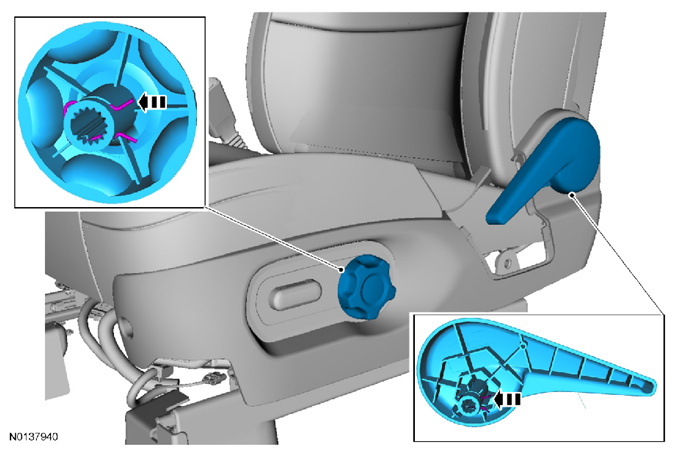

  5. If equipped.
    G08344013

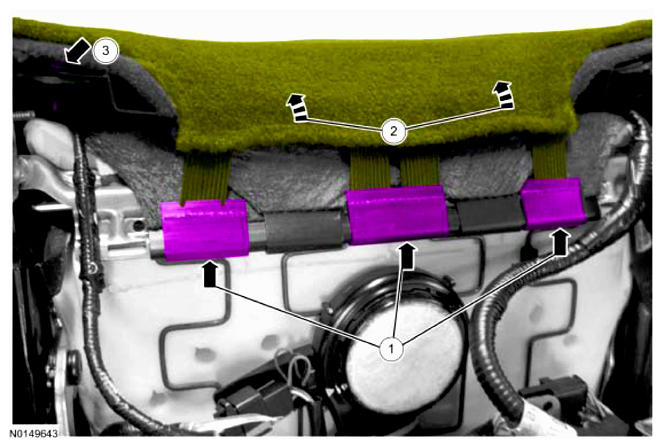

  6. G09090933
  7. G08625908
    1. From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
    2. NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, seat control switch bezel retainers can break.

      -

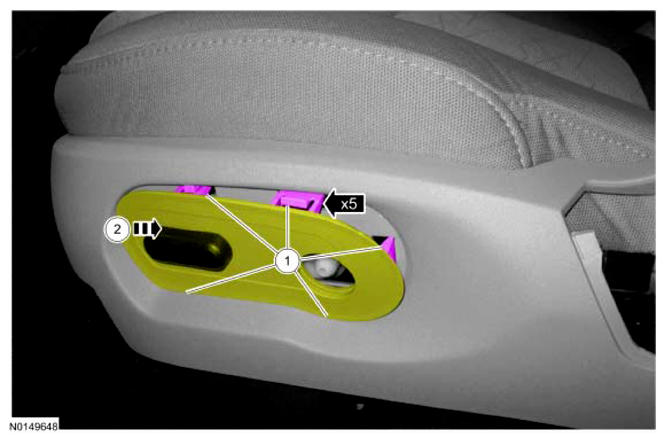

      G09090935
  9. G08625907

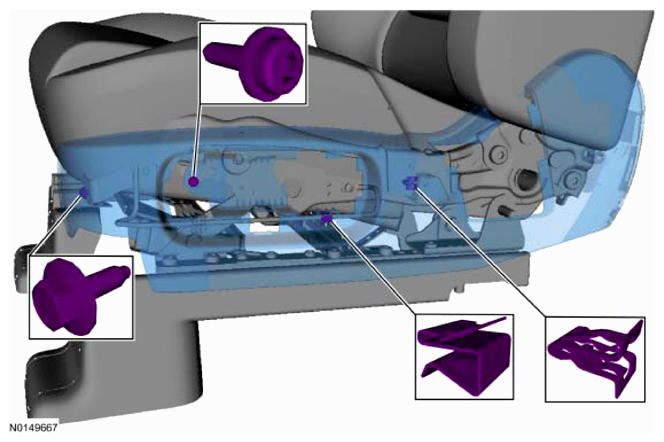

  10. G09090937

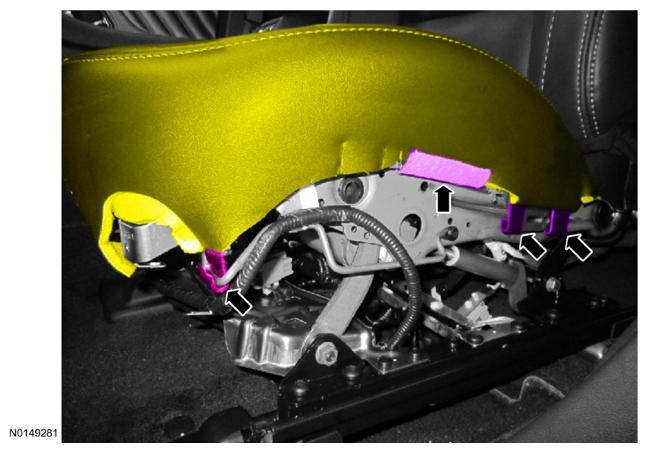

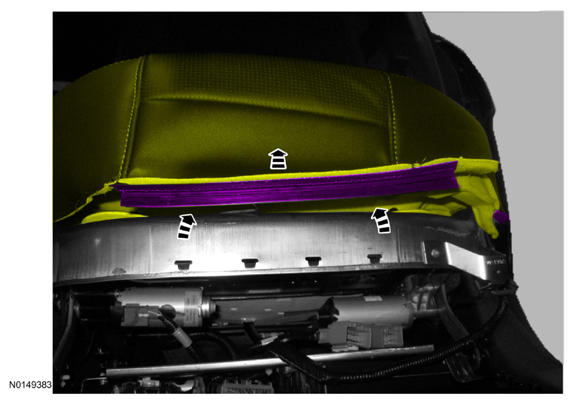

  11. G08625910
  12. G08625911

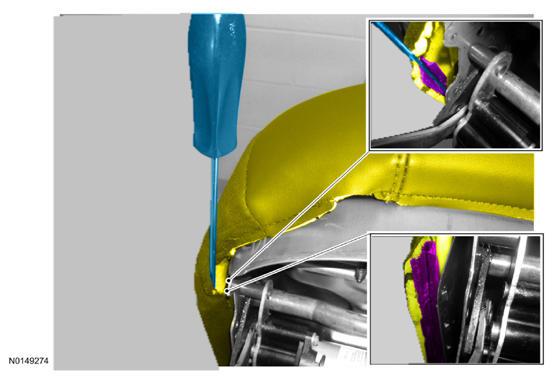

  13. Use the General Equipment: Flat Headed Screw Driver
    G08625912

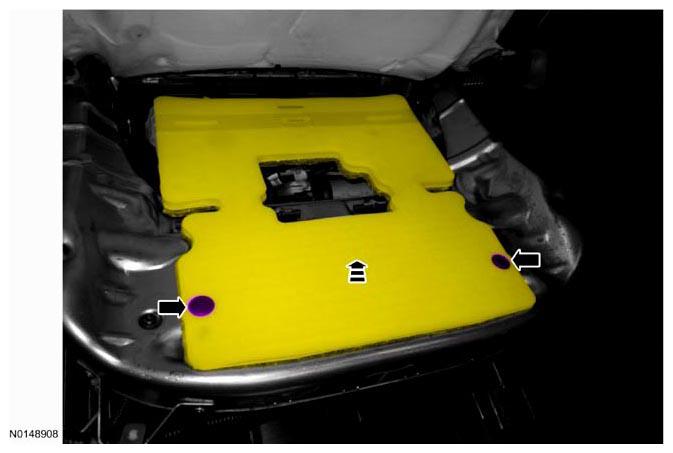

  14. Passenger seat with bladder OCS  .
    G08659507
  15. If equipped with climate controlled seats.

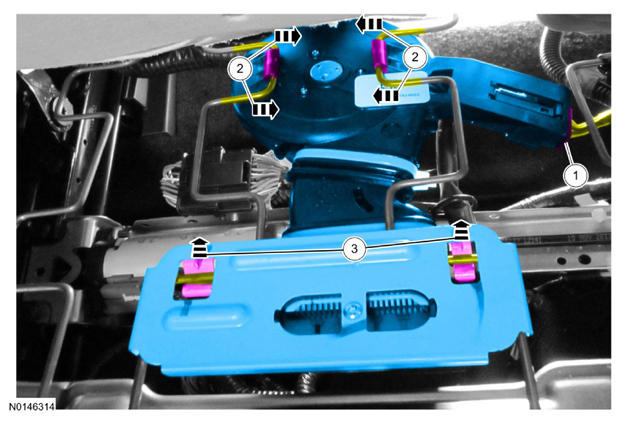

    G08625913

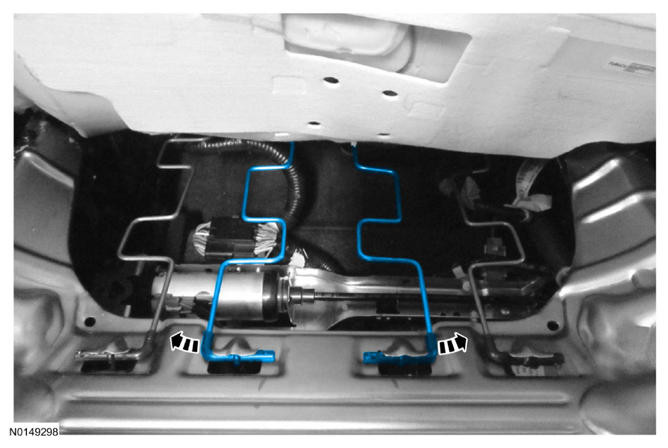

  16. NOTE: Note the position of the cushion support wires for installation.

    On both sides.

    G08625914
  17. NOTE: Seat cushion wire harness take-outs will vary with seat option content. Note the wire harness routing, attachment points and connections to the horizontal seat motor and bracket for installation.

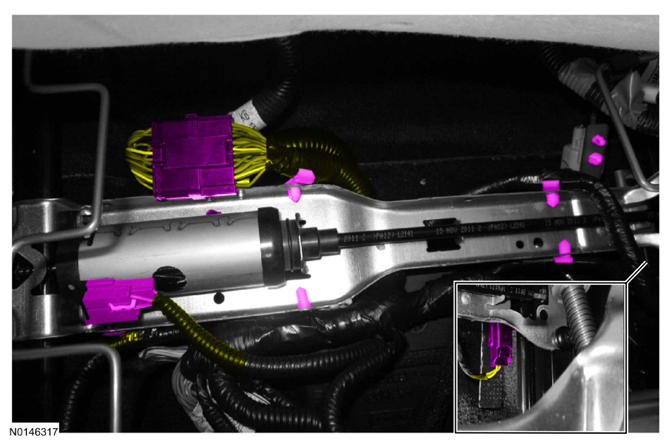

    G08625915

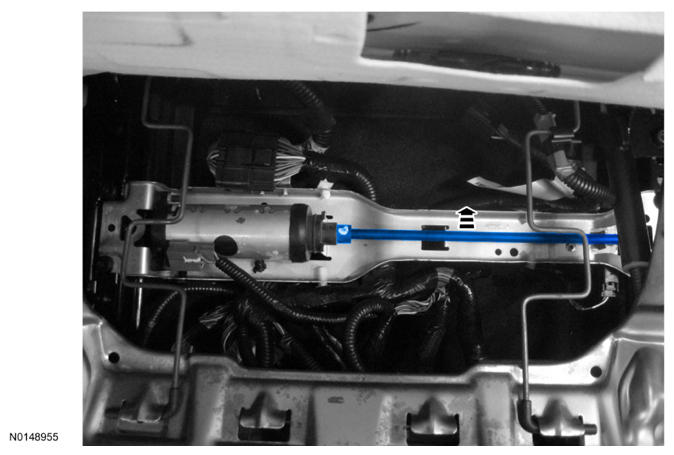

  18. G08625916

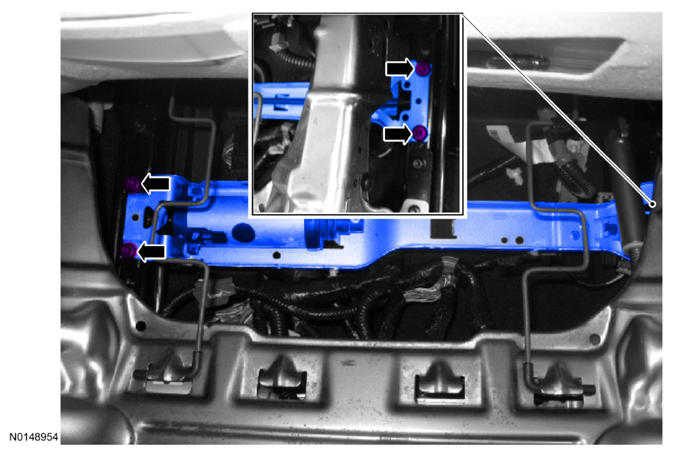

  19. G08625917
  20. NOTE: Pushing the seat forward or backward can aid in bolt hole alignment.

    On both sides.

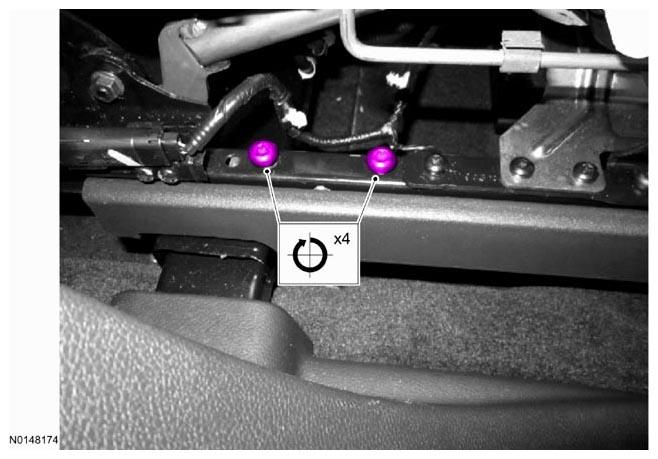

    G08596186
  21. NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops. Doing so can result in damage to the seat track requiring its replacement.
    NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
    NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

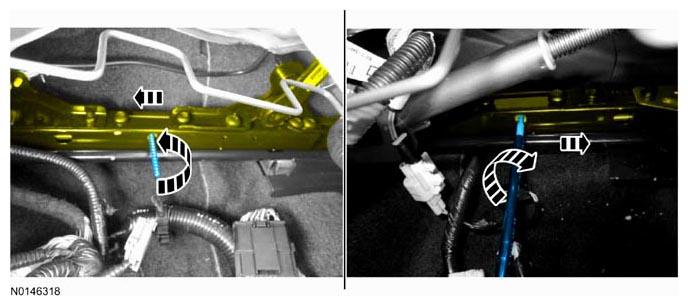

    Insert both seat track cables then drive the inboard and outboard seat tracks forward until the rear mounting bolts are accessible.

    General Equipment: Drill(s).

    G08596187
  22. Remove the front seat. Refer to SEAT .
  23. Install the front seat track motor. Refer to SEAT TRACK MOTOR - FRONT . Do not install the seat at this time.
  24. NOTE: Install as noted during removal.

    On both sides.

    G08625920
  25. If equipped with climate controlled seats.
    G08625921

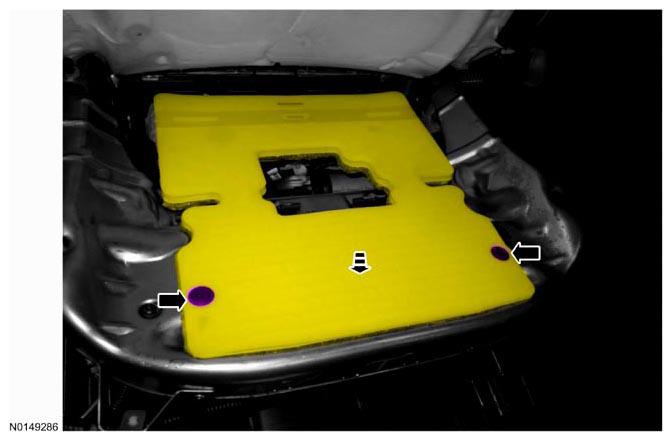

  26. Passenger seat with bladder OCS  .
    G08659517

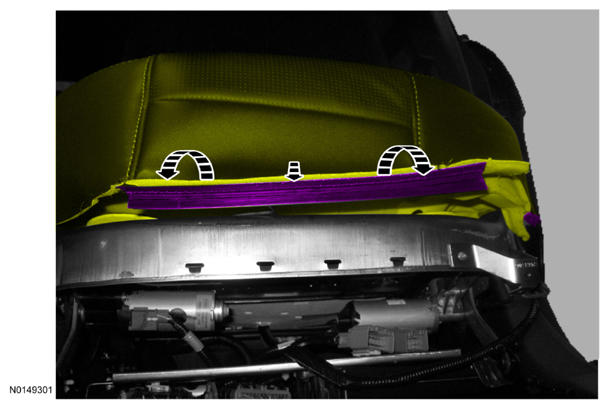

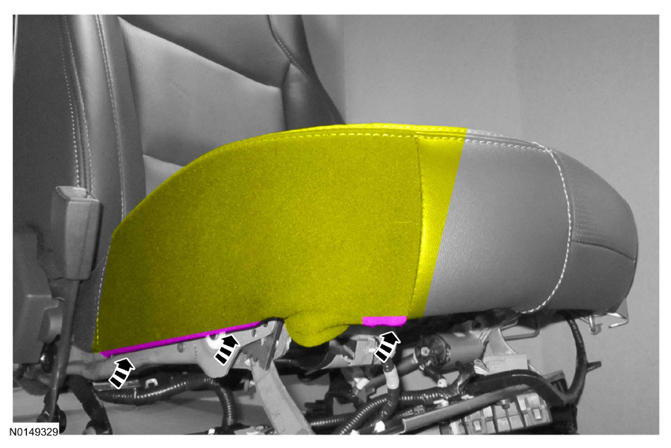

  27. G08625922
  28. G08625923

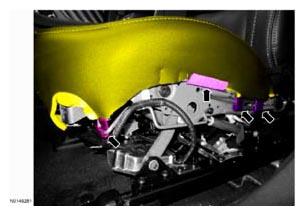

  29. G08729143
  30. G09090937

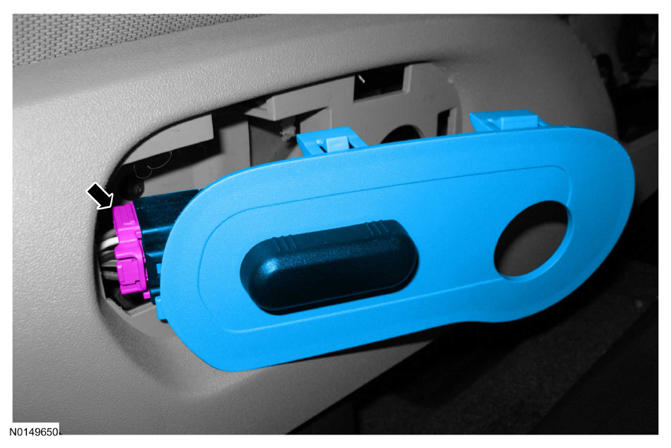

  31. G08625907

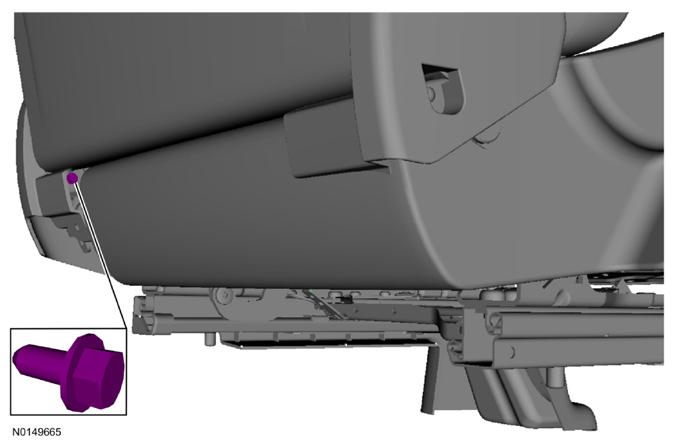

  32. G08625908

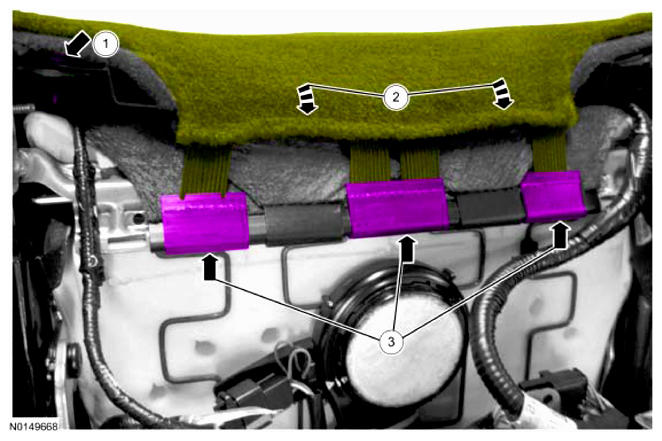

  33. G09090958

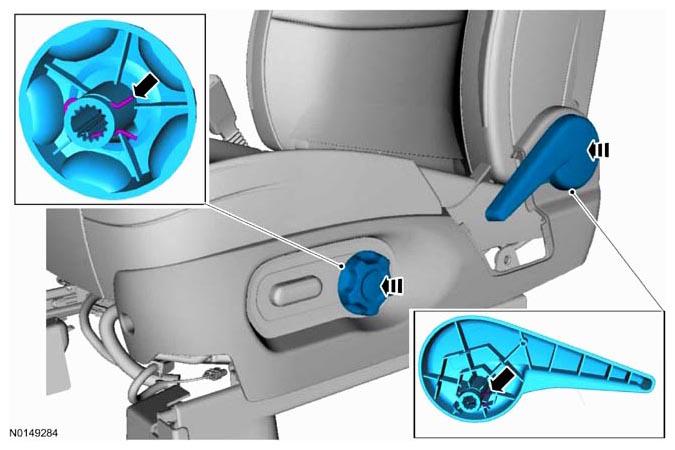

  34. If equipped.
    G08659525
  35. Install the front seat. Refer to SEAT . If a passenger seat with a bladder OCS has been serviced, do not prove out the SRS within the seat installation procedure. Proceed to the next step here after the seat has been installed in the vehicle and repower has been done  .
  36. For a passenger seat with a bladder OCS  , carry out the OCS  reset. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .
  37. If equipped with memory seat, operate the horizontal motor in both directions through the full range of travel to allow the DSM  to correctly register stop positions and prevent premature stopping points after the repair is complete.
