Transmission Fluid Pan: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The transmission fluid pan gasket is a reusable gasket.
  1. Clean the transmission pan and gasket. Inspect the transmission fluid pan gasket for damage and install a new transmission fluid pan gasket if necessary. Make sure the magnet is clean and free of debris.
  2. Install the transmission fluid pan gasket, transmission fluid pan and install the 19 bolts. Tighten the bolts in a crisscross pattern.
    • Tighten to 9 Nm (80 lb-in).

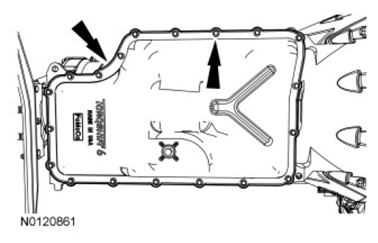

      Fig 1: Locating Transmission Fluid Pan And Gasket Mounting Bolts
      G07482786Courtesy of FORD MOTOR CO.
  3. Fill the transmission with clean transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
