Transmission Filler Tube - Gasoline Engines: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new transmission fluid filler tube O-ring seal and lubricate it with clean transmission fluid.
    Fig 1: Locating Transmission Fluid Filler Tube O-Ring Seal
    G07482897Courtesy of FORD MOTOR CO.
  2. Install the transmission fluid filler tube in the transmission and install the lower transmission fluid filler tube bolt.
    • Tighten to 25 Nm (18 lb-ft).
      Fig 2: Locating Transmission Fluid Filler Tube Mounting Bolt
      G07482896Courtesy of FORD MOTOR CO.
  3. Install the upper transmission fluid filler tube bolt.
    • Tighten to 11 Nm (97 lb-in).

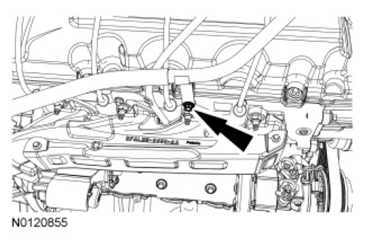

      Fig 3: Locating Upper Transmission Fluid Filler Tube Bolt
      G07482901Courtesy of FORD MOTOR CO.
  4. Check the transmission fluid. Refer to PRELIMINARY INSPECTION .
