Transmission - Diesel Engines: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

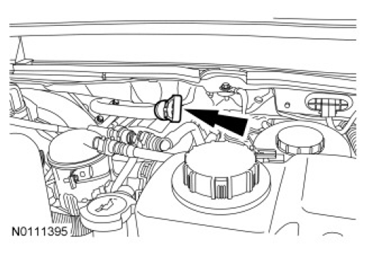

  2. Remove the transmission fluid level indicator.
    Fig 1: Locating Transmission Fluid Level Indicator
    G07482895Courtesy of FORD MOTOR CO.
  3. Remove the starter motor. For additional information, refer to STARTING SYSTEM - DIESEL ENGINES or ENGINE CONTROLS - INTRODUCTION (EXCEPT DIESEL & HYBRID) (SECTION 0) .
  4. Remove the retainers and remove the starter dust shield.
    Fig 2: Locating Starter Dust Shield Retainers
    G07483002Courtesy of FORD MOTOR CO.
  5. Remove and discard the 6 torque converter nuts.
    Fig 3: Locating Torque Converter Nut
    G07483003Courtesy of FORD MOTOR CO.
  6. NOTE: If transmission disassembly is required, drain the transmission fluid.

    Remove the plug and drain the transmission fluid. Install the drain plug.

    • Tighten to 18 Nm (159 lb-in).
      Fig 4: Locating Transmission Fluid Pan Drain Plug
      G07482768Courtesy of FORD MOTOR CO.
  7. Rotate the shell of the transmission vehicle harness connector counterclockwise and disconnect the transmission vehicle harness connector.
    Fig 5: Locating Transmission Vehicle Harness Connector
    G07482797Courtesy of FORD MOTOR CO.

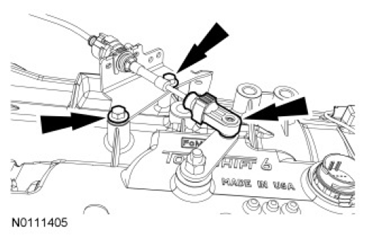

  8. Disconnect the selector lever cable end from the manual control lever, remove the 2 bolts and position the selector lever cable and bracket aside.
    Fig 6: Locating Selector Lever Cable End And Mounting Bolts
    G07482965Courtesy of FORD MOTOR CO.
  9. Remove the wiring harness retainer from the transmission case and position the wiring harness aside.
    Fig 7: Locating Wiring Harness Retainers
    G07482966Courtesy of FORD MOTOR CO.
  10. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.
    NOTE: The RH engine support insulator studs may come out of the insulator while removing the nuts. Install new RH engine support insulator studs if the studs come out.

    Remove and discard the 4 RH engine support insulator nuts.

    Fig 8: Locating RH Engine Support Insulator Nuts
    G06772798Courtesy of FORD MOTOR CO.
  11. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.

    Remove and discard the 3 LH engine support insulator nuts.

    Fig 9: Locating LH Engine Support Insulator Nuts
    G06772788Courtesy of FORD MOTOR CO.

    Rear Wheel Drive (RWD)

  12. NOTE: When removing the crossmember, support the transmission using a heavy duty transmission jack.
    • Place the jack so the fluid pan does not support the weight of the transmission  .
    • Fasten a chain or ratchet strap over the top of the transmission and to both sides of the jack  .

      Failure to use a heavy duty transmission jack can result in damage to the transmission  .

    NOTE: The transmission support insulator studs may come out of the transmission support insulator while removing the transmission support insulator-to-crossmember nuts. Install new transmission support insulator studs if the studs come out.

    Remove the transmission support crossmember. For additional information, refer to FULL FRAME & BODY MOUNTING .

    RWD vehicles equipped with a slip yoke

  13. Remove the rear driveshaft. For additional information, refer to DRIVESHAFT .
  14. If installing a new, remanufactured or overhauled transmission, remove and discard the 2 transmission support insulator-to-transmission bolts and remove the transmission support insulator.
    Fig 10: Locating Transmission Support Insulator-To-Transmission Bolts
    G07482969Courtesy of FORD MOTOR CO.

    RWD vehicles equipped with a fixed yoke

  15. NOTE: It may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer if a pry area is not present on the driveshaft side.

    Index mark the rear driveshaft. Remove and discard the 4 bolts and position the rear driveshaft aside.

    • Support the driveshaft using mechanics wire.
      Fig 11: Locating Rear Driveshaft Index Mark And Bolts
      G07482940Courtesy of FORD MOTOR CO.
  16. If installing a new, remanufactured or overhauled transmission, remove and discard the 4 transmission support insulator bracket bolts and remove the transmission support insulator and bracket.
    Fig 12: Locating Transmission Support Insulator And Bracket Mounting Bolts
    G07482971Courtesy of FORD MOTOR CO.

    Vehicles equipped with Four-Wheel Drive (4WD) and a manual shift transfer case

  17. Remove the transfer case linkage bolt and position the transfer case linkage aside.
    Fig 13: Locating Transfer Case Linkage Bolt
    G07482972Courtesy of FORD MOTOR CO.
  18. Remove the bolt and the transfer case linkage bracket.
    Fig 14: Locating Transfer Case Linkage Bracket Mounting Bolt
    G07482973Courtesy of FORD MOTOR CO.

    4WD vehicles

  19. NOTE: When removing the transfer case, support the transmission using a heavy duty transmission jack.
    • Place the jack so the fluid pan does not support the weight of the transmission  .
    • Fasten a chain or ratchet strap over the top of the transmission and to both sides of the jack  .

      Failure to use a heavy duty transmission jack can result in damage to the transmission  .

    NOTE: If the transmission is being removed for the flexplate or engine related repairs, the transfer case does not need to be separated from the transmission.

    Remove the transfer case. For additional information, refer to TRANSFER CASE .

    All vehicles

  20. Remove the bolt and position the transmission fluid cooler tubes aside.
    Fig 15: Locating Transmission Fluid Cooler Tube Mounting Bolt
    G07482974Courtesy of FORD MOTOR CO.
  21. Remove the lower transmission fluid filler tube bolt and position the transmission fluid filler tube aside. Remove and discard the transmission fluid filler tube O-ring.
    Fig 16: Locating Transmission Fluid Filler Tube Mounting Bolt
    G07482896Courtesy of FORD MOTOR CO.
  22. Remove the 11 bolts and remove the transmission from the engine dowel pins.
    Fig 17: Locating Transmission To Engine Dowel Pin Mounting Bolts
    G07483017Courtesy of FORD MOTOR CO.
  23. Slide the transmission back enough to install the Torque Converter Retainer and remove the transmission.
    Fig 18: Installing Torque Converter Retainer
    G06140800Courtesy of FORD MOTOR CO.
