Internal Harness Service: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan. Refer to TRANSMISSION FLUID PAN .
  2. Rotate the shell of the transmission vehicle harness connector counterclockwise and disconnect the transmission vehicle harness connector.
    Fig 1: Locating Transmission Vehicle Harness Connector
    G07482797Courtesy of FORD MOTOR CO.
  3. Disconnect the selector lever cable end from the manual control lever.
    Fig 2: Locating Selector Lever Cable End
    G07482798Courtesy of FORD MOTOR CO.
  4. Move the manual control lever counterclockwise to the LOW position.

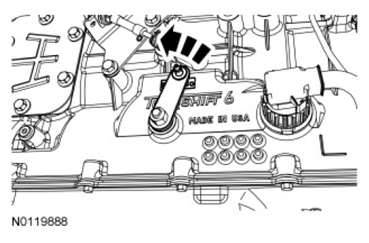

    Fig 3: Moving Manual Control Lever Counterclockwise To Low Position
    G07482799Courtesy of FORD MOTOR CO.
  5. Disconnect the 7 solenoid electrical connectors, 2 speed sensor electrical connectors, TFT sensor electrical connector and the TR sensor electrical connector and position the transmission wiring harness aside.
    Fig 4: Locating Solenoid, Speed Sensor, TFT Sensor And TR Sensor Electrical Connectors
    G07482800Courtesy of FORD MOTOR CO.
  6. Compress the 2 black tabs and push the wiring harness bulkhead through the transmission case and remove the transmission wiring harness.

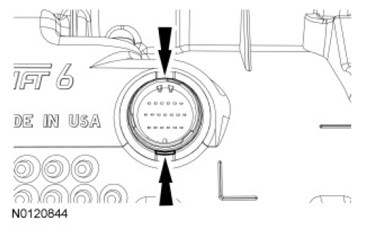

    Fig 5: Locating Transmission Wiring Harness Black Tabs
    G07482801Courtesy of FORD MOTOR CO.
