Internal Harness Service: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the wiring harness bulkhead O-ring with clean transmission fluid and install the wiring harness bulkhead in the transmission case. Make sure the 2 tabs lock the bulkhead in the transmission case.

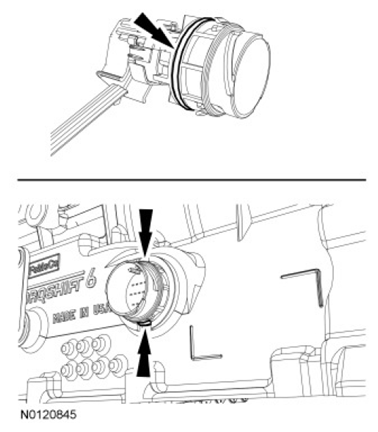

    Fig 1: Locating Wiring Harness Bulkhead O-Ring And Tabs
    G07482802Courtesy of FORD MOTOR CO.
  2. Connect the 7 solenoid electrical connectors, 2 speed sensor electrical connectors, TFT sensor electrical connector and the TR sensor electrical connector.

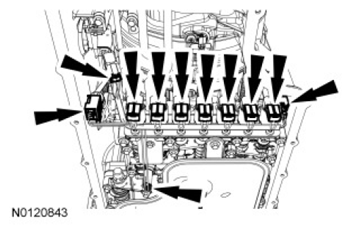

    Fig 2: Locating Solenoid, Speed Sensor, TFT Sensor And TR Sensor Electrical Connectors
    G07482800Courtesy of FORD MOTOR CO.
  3. Connect the selector lever cable end.

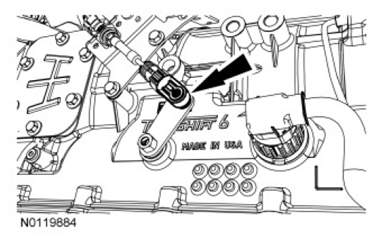

    Fig 3: Locating Selector Lever Cable End
    G07482798Courtesy of FORD MOTOR CO.
  4. Install the transmission vehicle harness connector and lock the transmission vehicle harness connector by rotating the outer shell clockwise.
    Fig 4: Locating Transmission Vehicle Harness Connector
    G07482797Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN .
