Extension Housing Gasket: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

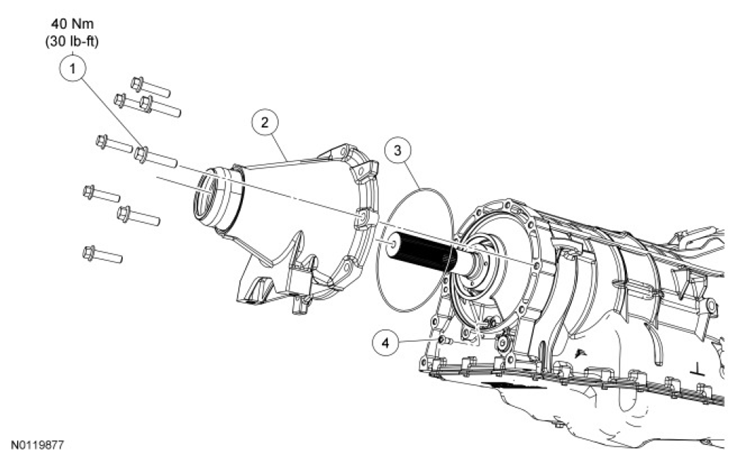

| Item | Part Number | Description |
|---|---|---|
| 1 | W500120 | Extension housing bolts (8 required) |
| 2 | 7A039 | Extension housing |
| 3 | 7A248 | Extension housing O-ring seal |
| 4 | 7H366 | Rear bushing fluid feed seal |
