Extension Housing Gasket: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install a new rear bushing fluid feed seal.

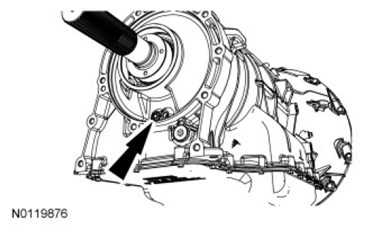

Fig 1: Locating Rear Bushing Fluid Feed Seal
Courtesy of FORD MOTOR CO.
Install a new O-ring seal on the extension housing and lubricate it with clean transmission fluid.

Fig 2: Locating Extension Housing O-Ring Seal
Courtesy of FORD MOTOR CO.
Install the extension housing and the 8 bolts.
- Tighten to 40 Nm (30 lb-ft).

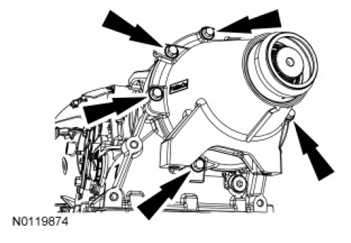

  Fig 3: Locating Extension Housing Bolts
  Courtesy of FORD MOTOR CO.
Install the transmission support insulator. For additional information, refer to TRANSMISSION SUPPORT INSULATOR .
Install the driveshaft. For additional information, refer to DRIVESHAFT .
Start the engine. Move the selector lever through all gear ranges while checking for engagements to allow the main control hydraulic circuits to fill with transmission fluid.
NOTE: The use of any transmission fluid other than specified may result in the transmission failing to operate in a normal manner or transmission failure.

Using the scan tool with the engine running, check and make sure the transmission is at normal operating temperature 82-93°C (180-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
