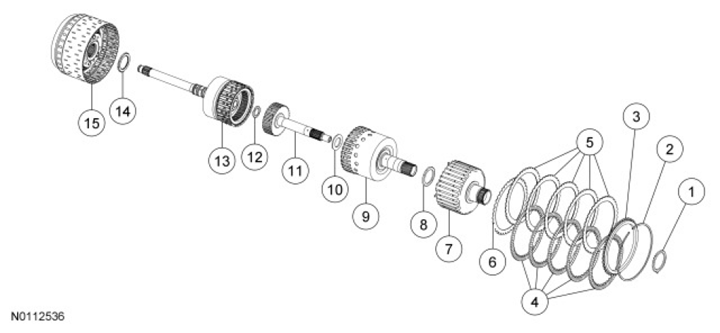

Forward/Overdrive Clutch Assembly
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F373 | Forward/overdrive clutch assembly thrust bearing |
| 2 | 7D483 | Direct (3, 5, R) clutch snap ring |
| 3 | 7B066 | Direct (3, 5, R) clutch pressure plate |
| 4 | 7B164 | Direct (3, 5, R) clutch plates |
| 5 | 7B442 | Direct (3, 5, R) clutch steel plates |
| 6 | 7E085 | Direct (3, 5, R) wave spring |
| 7 | 7H351 | Direct (3, 5, R) clutch hub |
| 8 | 7C096 | Direct (3, 5, R) clutch hub thrust bearing |
| 9 | 7B067 | Forward (1, 2, 3, 4) clutch hub |
| 10 | 7L495 | Forward (1, 2, 3, 4) clutch hub thrust bearing |
| 11 | 7B311 | Overdrive (4, 5, 6) clutch hub and center shaft assembly |
| 12 | 7072 | Overdrive (4, 5, 6) clutch hub and center shaft assembly thrust bearing |
| 13 | - | Overdrive (4, 5, 6) clutch/input shaft assembly |
| 14 | 7C096 | Front planetary carrier thrust bearing |
| 15 | 7A360 | Forward (1, 2, 3, 4) clutch assembly |
