5th Gear: Mechanical: Powerflow

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

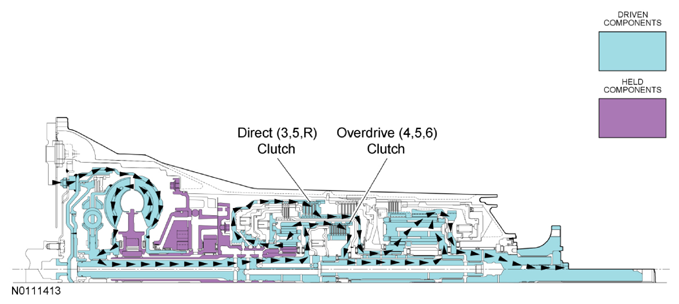

G08594680

In 5th gear, SSE is commanded OFF by the PCM/TCM to apply the overdrive (4, 5, 6) clutch. SSB is commanded OFF by the PCM/TCM to apply the direct (3, 5, R) clutch. The overdrive (4, 5, 6) clutch is applied to transfer power from the input shaft to the rear planetary carrier and the direct (3, 5, R) clutch is applied to transfer power from the front planetary carrier to the No. 2 sun gear, providing a 0.858 to 1 gear ratio.
