Overdrive (4, 5, 6) Clutch
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
The overdrive (4, 5, 6) clutch connects the input shaft with the rear planetary carrier and is applied in 4th, 5th and 6th gears.

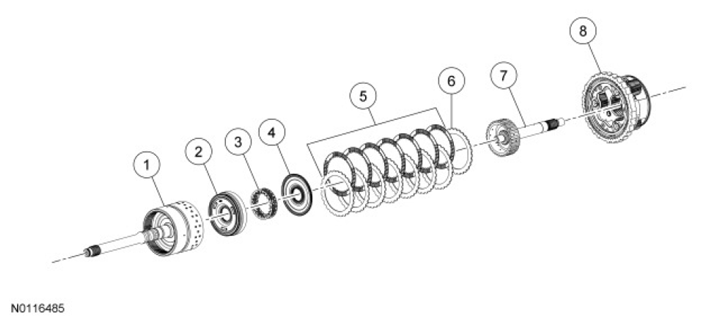

| Item | Description |
|---|---|
| 1 | Input shaft/overdrive (4, 5, 6) clutch cylinder |
| 2 | Overdrive (4, 5, 6) clutch piston |
| 3 | Overdrive (4, 5, 6) clutch piston return spring |
| 4 | Overdrive (4, 5, 6) clutch balance piston |
| 5 | Overdrive (4, 5, 6) clutch assembly |
| 6 | Overdrive (4, 5, 6) clutch pressure plate |
| 7 | Overdrive (4, 5, 6) clutch hub and shaft assembly |
| 8 | Rear planetary assembly carrier |
