Forward (1, 2, 3, 4) Clutch

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

The forward (1, 2, 3, 4) clutch connects the front planetary carrier to the rear No. 3 sun gear. The forward (1, 2, 3, 4) clutch is applied in 1st, 2nd, 3rd and 4th gears.

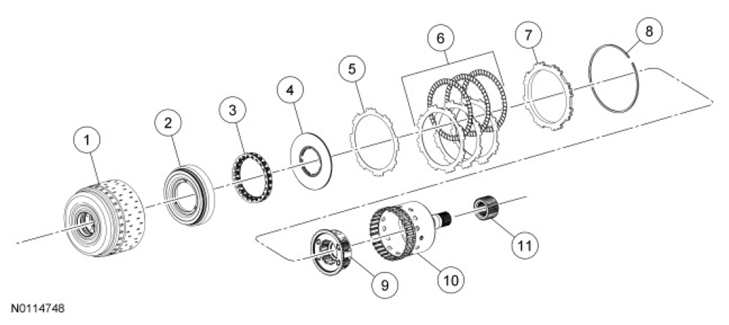

Fig 1: Identifying Forward Clutch Components (1, 2, 3, 4)
G07482701Courtesy of FORD MOTOR CO.
Item Description
1 Forward (1, 2, 3, 4)/direct (3, 5, R) clutch cylinder
2 Forward (1, 2, 3, 4) clutch piston
3 Forward (1, 2, 3, 4) clutch piston return spring
4 Forward (1, 2, 3, 4) clutch balance piston
5 Forward (1, 2, 3, 4) clutch wave spring
6 Forward (1, 2, 3, 4) clutch assembly
7 Forward (1, 2, 3, 4) clutch pressure plate
8 Forward (1, 2, 3, 4) clutch snap ring
9 Front planetary carrier assembly
10 Forward (1, 2, 3, 4) clutch hub and shaft assembly
11 Rear planetary No. 3 sun gear
