Direct (3, 5, R) Clutch

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

The direct (3, 5, R) clutch connects the front planetary carrier to the rear No. 2 sun gear. The direct (3, 5, R) clutch is applied in reverse, 3rd and 5th gears.

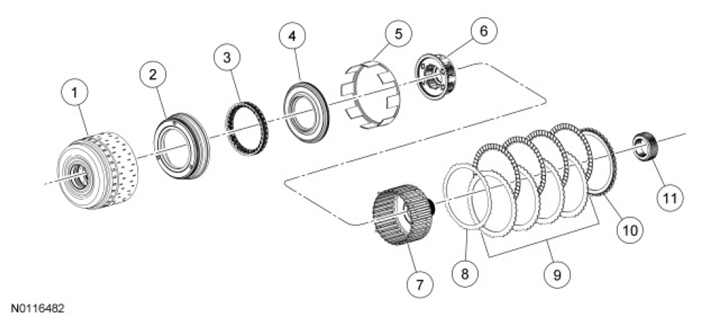

Fig 1: Identifying Direct Clutch Components (3, 5, R)
G07482702Courtesy of FORD MOTOR CO.
Item Description
1 Forward (1, 2, 3, 4)/direct (3, 5, R) clutch cylinder
2 Direct (3, 5, R) clutch piston
3 Direct (3, 5, R) clutch piston return spring
4 Direct (3, 5, R) clutch balance piston
5 Direct (3, 5, R) clutch apply ring
6 Front planetary carrier assembly
7 Direct (3, 5, R)/intermediate (2, 6) clutch hub and shaft assembly
8 Direct (3, 5, R) clutch wave spring
9 Direct (3, 5, R) clutch assembly
10 Direct (3, 5, R) clutch pressure plate
11 Rear planetary No. 2 sun gear
