Steering Column Shroud: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicle without column selector lever shown in illustration, vehicle with column selector lever similar.

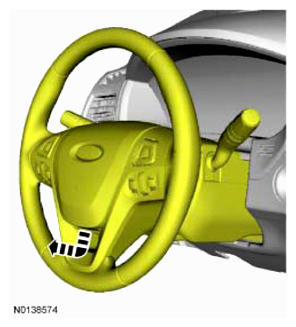

  1. G09084870Courtesy of FORD MOTOR CO.
  2. Tighten to 2 Nm (18 lb-in).
    G07430978Courtesy of FORD MOTOR CO.

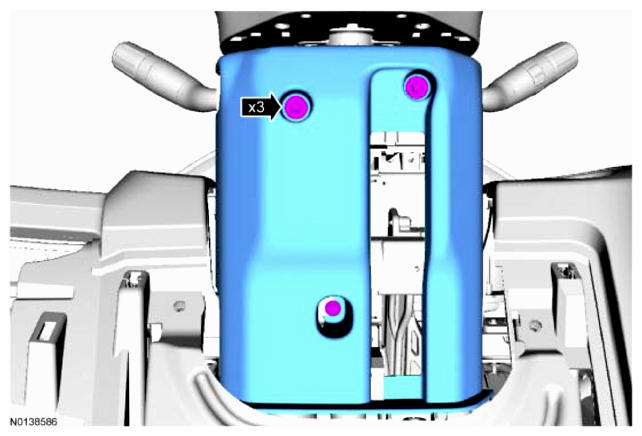

  3. G09084872Courtesy of FORD MOTOR CO.

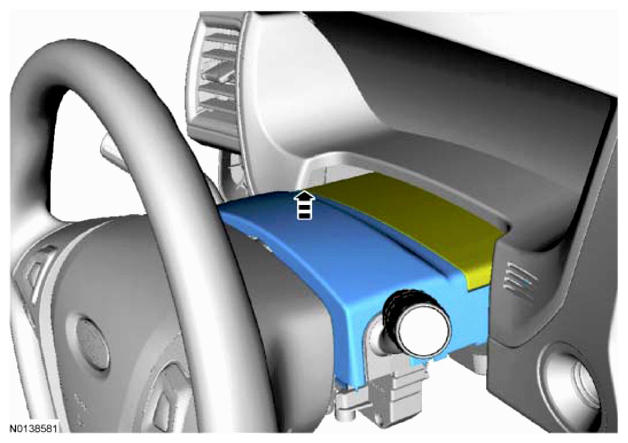

  4. G09084873Courtesy of FORD MOTOR CO.
