Component Location

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

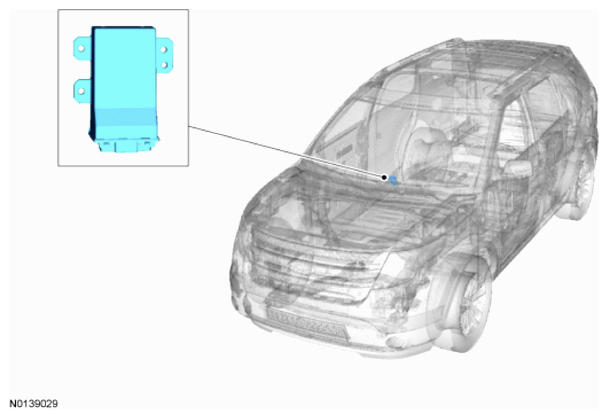

G09084853Courtesy of FORD MOTOR CO.


Item Description Comments
1 Heated Steering Wheel Module (HSWM) Located in the instrument panel, behind the FDIM
