Brake Vacuum Pump: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the air cleaner outlet pipe. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
  2. G08028122
    • 10 Nm (89 lb-in)

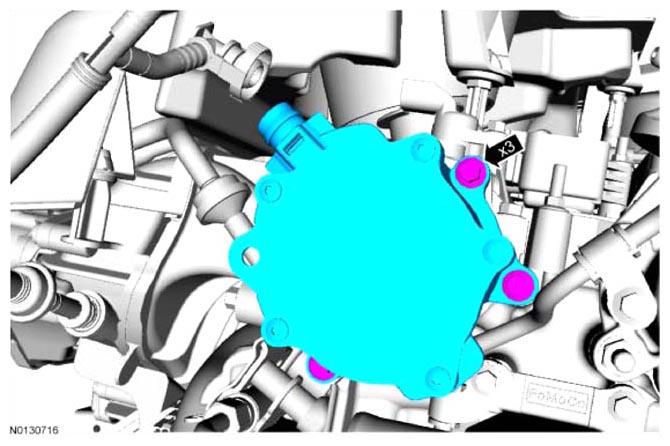

    G08028123
  4. Visual check.
    G08028124
