Intermediate Shaft - 3.5L GTDI: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure, refer to SAFETY WARNINGS
. Failure to follow this instruction may result in serious personal injury.
NOTE:
The intermediate shaft seal in the PTU must be replaced whenever the intermediate shaft is removed or a leak may occur. REFER to
INTERMEDIATE SHAFT SEAL AND DEFLECTOR
.
- Remove the RH halfshaft. For additional information, refer to HALFSHAFT - RH, ALL WHEEL DRIVE (AWD), 3.5L GTDI .

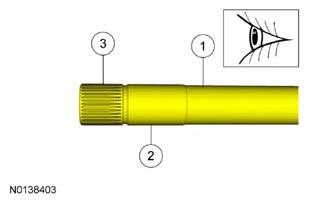

- Visual inspection.
