Halfshaft - RH, All Wheel Drive (AWD), 3.5L GTDI: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
  1. Remove the wheel and tire. REFER to WHEEL AND TIRE .
  2. This procedure step requires the specified number of technicians.
    G08617145

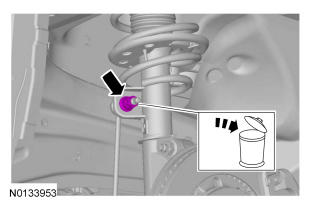

  3. Discard the specified component. Follow local disposal regulations.
    G08626643

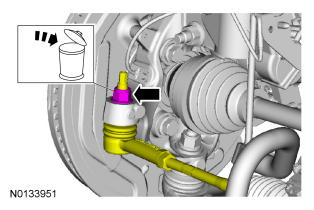

  4. Discard the specified component. Follow local disposal regulations.
    G08626644

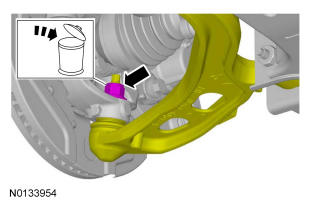

  5. NOTE: Use care when releasing the lower arm and knuckle into the resting position or damage to the ball joint seal or CV  boot may occur.

    Discard the specified component. Follow local disposal regulations.

    G08626645
  6. G08617111

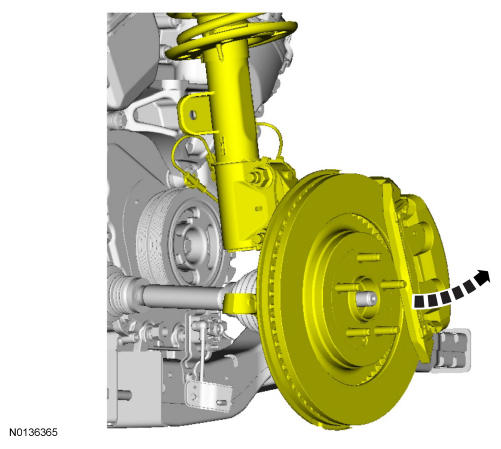

  7. G08626647

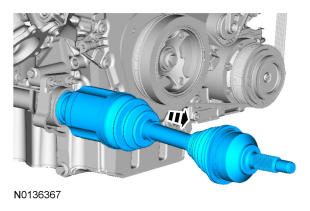

  8. NOTE: Do not pull on the outer part of the halfshaft or the CV  will separate. When seperating the RH halfshaft and intermediate shaft, pull on the inner part of the halfshaft.
    G08626649
  9. Visual check.
    G08617115
  10. Visual check.
    G09084717
