Section 26 (Automatic Transmission - 5R110W (TORQSHIFT-R)): Installation: Transmission: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Install a new Oil-To-Air (OTA) cooler as part of a transmission overhaul, or when installing a remanufactured transmission due to major metallic failure, multiple clutches or clutch plate failures or sufficient component wear, which results in metallic contamination.
NOTE: Prior to installation of a new or overhauled transmission, clean the transmission fluid cooler tubes. Otherwise transmission failure can occur.
  1. When an overhauled or remanufactured transmission is installed, flush and clean the transmission fluid cooler tubes, then verify fluid flow to prevent repeat repairs. For additional information, refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING  and TRANSMISSION FLUID COOLER .
  2. For vehicles equipped with a Power Take-Off (PTO) assembly, prior to installing the transmission, flush and clean the PTO assembly to remove any foreign material. Failure to remove foreign material from the PTO assembly may result in subsequent transmission concerns.
  3. NOTE: Prior to installation of the transmission, lubricate the torque converter pilot hub or damage to the torque converter or engine crankshaft can occur.

    Lubricate the torque converter pilot hub with multi-purpose grease.

    Fig 1: Locating Torque Converter Pilot Hub
    G06141137Courtesy of FORD MOTOR CO.
  4. Rotate the torque converter so the green or orange paint daub on the converter is in the 12 o'clock position.
  5. If the Torque Converter Retainer has not been installed during the assembly of the transmission, install the Torque Converter Retainer to hold the torque converter in place while moving and positioning the transmission in place. Once the transmission is in place, prior to bolting it to the engine, remove the Torque Converter Retainer.
    Fig 2: Removing Torque Converter Retainer
    G06140800Courtesy of FORD MOTOR CO.
  6. Install a new transmission fluid filler tube O-ring.
    Fig 3: Locating Transmission Fluid Filler Tube O-Ring
    G06140618Courtesy of FORD MOTOR CO.
  7. Position the transmission. While raising the transmission up into the engine compartment, use the transmission fluid level indicator as a guide and align the transmission fluid filler tube with the stub tube on the transmission.

    While installing the transmission to the engine, align the torque converter studs with the mounting holes in the flexplate.

    Fig 4: Locating Stub Tube On Transmission
    G06141140Courtesy of FORD MOTOR CO.
  8. Install the 7 transmission-to-engine bolts.
    • Tighten to 47 Nm (35 lb-ft).
      Fig 5: Locating Transmission-To-Engine Bolts
      G06140799Courtesy of FORD MOTOR CO.

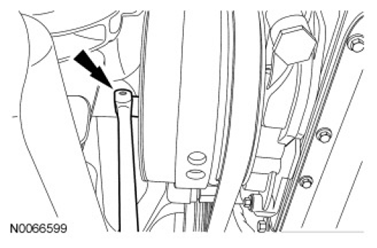

  9. Using a suitable tool, rotate the crankshaft pulley to provide access for the installation of the torque converter-to-flexplate nuts.
    Fig 6: Rotating Crankshaft Pulley Using Suitable Tool
    G06775892Courtesy of FORD MOTOR CO.
  10. Install the 6 new torque converter-to-flexplate nuts.
    • Tighten to 48 Nm (35 lb-ft).
      Fig 7: Locating Torque Converter-To-Flexplate Nuts
      G06126499Courtesy of FORD MOTOR CO.
  11. Install the cylinder block opening cover.
    Fig 8: Locating Cylinder Block Opening Cover
    G06140794Courtesy of FORD MOTOR CO.

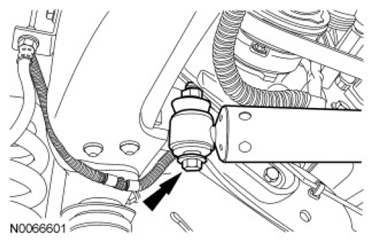

  12. Install the steering damper and install the steering damper-to-frame bolt and nut.
    • Tighten to 103 Nm (76 lb-ft).
      Fig 9: Locating Steering Damper-To-Frame Bolt
      G06775891Courtesy of FORD MOTOR CO.
  13. Install the starter motor. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES .
  14. Install the front transmission fluid cooler tube.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 10: Locating Front Transmission Fluid Cooler Tube Nut
      G06140781Courtesy of FORD MOTOR CO.
  15. Install the rear transmission fluid cooler tube.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 11: Locating Rear Transmission Fluid Cooler Tube
      G06140780Courtesy of FORD MOTOR CO.

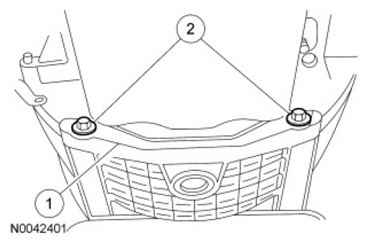

  16. Install the flexplate inspection cover.
    1. Position the flexplate inspection cover.
    2. Install the flexplate inspection cover bolts.
      • Tighten to 34 Nm (25 lb-ft).
        Fig 12: Identifying Flexplate Inspection Cover And Bolts
        G06776237Courtesy of FORD MOTOR CO.
  17. If required, install new transmission insulator studs.
    • Tighten to 75 Nm (55 lb-ft).
  18. Install the transmission insulator and the new transmission insulator-to-extension housing bolts.
    • Tighten to 103 Nm (76 lb-ft).
      Fig 13: Locating Transmission Insulator Bolts
      G07482236Courtesy of FORD MOTOR CO.
  19. Install the transmission support crossmember. For additional information, refer to FULL FRAME & BODY MOUNTING .
  20. NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

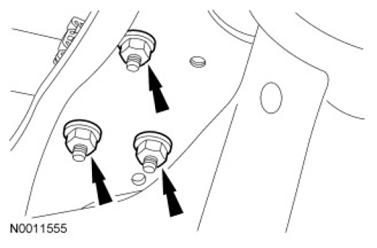

    Install the 3 new LH engine support insulator nuts.

    • Tighten to 200 Nm (148 lb-ft).
      Fig 14: Locating LH Engine Support Insulator Nuts
      G06772788Courtesy of FORD MOTOR CO.
  21. NOTE: The RH engine support insulator studs may come out of the insulator while removing the nuts. Install new RH engine support insulator studs if the studs come out.

    If required, install the new RH engine support insulator stud (W790018).

    • Tighten to 80 Nm (59 lb-ft).
  22. NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

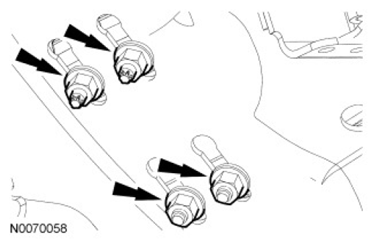

    Install the 4 new RH engine support insulator nuts.

    • Tighten to 115 Nm (85 lb-ft).
      Fig 15: Locating RH Engine Support Insulator Nuts
      G06772798Courtesy of FORD MOTOR CO.
  23. NOTE: RH shown in illustration, LH similar.

    Connect the RH and LH wiring harness to the side of the transmission.

    Fig 16: Locating RH And LH Wiring Harness
    G06140814Courtesy of FORD MOTOR CO.
  24. Connect the Output Shaft Speed (OSS) sensor.
    Fig 17: Locating Output Shaft Speed (OSS) Sensor Connector
    G06140648Courtesy of FORD MOTOR CO.
  25. Connect the Turbine Shaft Speed (TSS)/intermediate shaft speed sensor.
    Fig 18: Locating Turbine Shaft Speed (TSS)/Intermediate Shaft Speed Sensor Connector
    G06140638Courtesy of FORD MOTOR CO.
  26. Connect the transmission vehicle harness connector.
    • Tighten to 5 Nm (44 lb-in).
      Fig 19: Locating Transmission Vehicle Harness Connector
      G06140624Courtesy of FORD MOTOR CO.
  27. NOTE: If the vehicle is equipped with a PTO unit, all or part of the PTO unit will need to be installed.
    NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable assembly between the manual control lever and the selector lever cable bracket.

    Install the selector lever cable.

    1. Install the selector lever cable bracket and selector lever cable bracket bolts.
      • Tighten to 48 Nm (35 lb-ft).
    2. Connect the selector lever cable to the manual control lever.

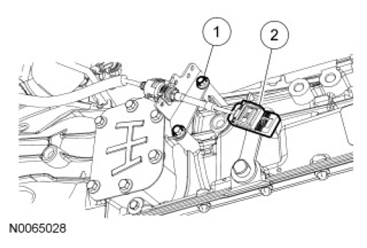

      Fig 20: Identifying Selector Lever Cable End And Selector Lever Cable Bracket Bolts
      G06776244Courtesy of FORD MOTOR CO.

    Four-Wheel Drive (4WD) vehicles

  28. Install the transfer case assembly. For additional information, refer to TRANSFER CASE .

    Vehicles equipped with 4WD and a manual shift transfer case

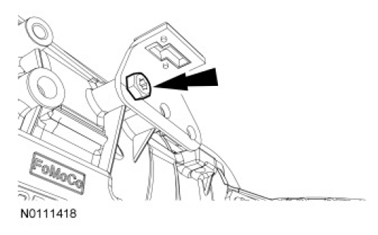

  29. Install the transfer case linkage bracket and loosely install the bolt.
    Fig 21: Locating Transfer Case Linkage Bracket Bolt
    G07482973Courtesy of FORD MOTOR CO.

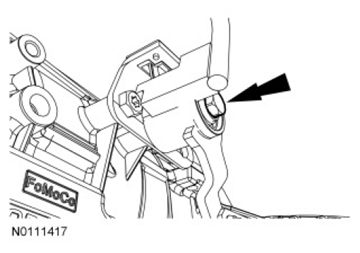

  30. Install the transfer case linkage and install the bolt.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 22: Locating Transfer Case Linkage Bolt
      G07482972Courtesy of FORD MOTOR CO.

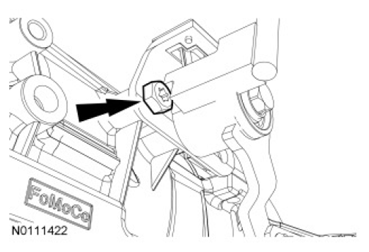

  31. Tighten the transfer case linkage bracket bolt.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 23: Locating Transfer Case Linkage Bracket Bolt
      G07482988Courtesy of FORD MOTOR CO.

    Rear Wheel Drive (RWD) vehicles

  32. NOTE: Align index marks made during removal.
    NOTE: Install new bolts and retainers.

    Connect the driveshaft to the transmission and install the 4 new driveshaft-to-transmission flange bolts.

    • Tighten to 103 Nm (76 lb-ft).
      Fig 24: Locating Driveshaft Mechanic's Wire
      G06776490Courtesy of FORD MOTOR CO.

    All vehicles

  33. Install the exhaust Y-pipe. For additional information, refer to EXHAUST SYSTEM .
  34. Connect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  35. Fill the transmission with clean transmission fluid.
  36. Adjust the selector lever cable. Verify the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  37. NOTE: Using transmission fluid other than what is specified can result in the transmission failing to operate in a normal manner or transmission failure.

    Using the scan tool with the engine running, make sure the transmission is at normal operating temperature 66-77°C (150-170°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.

  38. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
