Output Shaft Speed (OSS) Sensor: Material

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Item	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LV

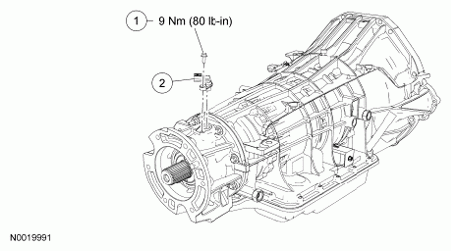

Fig 1: Output Shaft Speed (OSS) Sensor And Retaining Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N805503	Output Shaft Speed (OSS) sensor retaining bolt
2	7H103	OSS sensor
