Line Pressure Control Solenoid - PC-A: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the main control valve body.
    1. Install the PCA and install the E clip.
    2. Push the transmission internal harness connector through the solenoid body and twist the connector, locking it into place.
    3. Install the SSPCC back into place and install the E clip.
    4. Connect the electrical connectors to the PCA and the SSPCC.
    5. Install the wire harness to solenoid body and tighten the bolts.

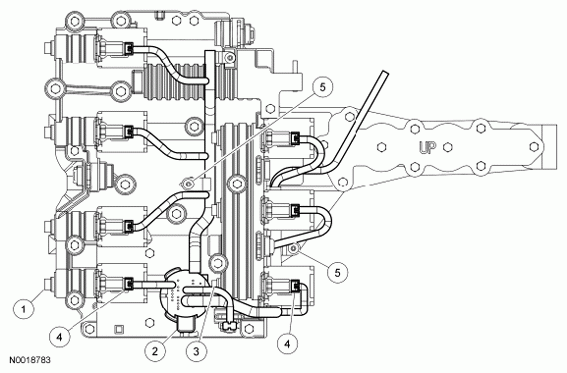

      Fig 1: Identifying Solenoid Body Wire Harness E Clip And Bolts
      G06140655Courtesy of FORD MOTOR CO.
  2. Install the solenoid body electrical connector O-ring seal, lubricate it with transmission fluid.
    Fig 2: Locating Solenoid Body Electrical Connector O-Ring Seal
    G06140652Courtesy of FORD MOTOR CO.
  3. Install the transmission main control valve body. For additional information, refer to SOLENOID BODY ASSEMBLY .
