Internal Harness Service: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the transmission internal harness connector through the transmission solenoid body, twist it to lock it in place.
  2. Connect the transmission internal harness.
    1. Install the 2 screws.
    2. Connect the TFT sensor.
    3. Connect the solenoid connectors.

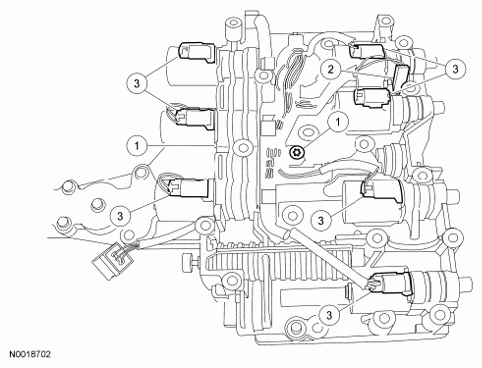

      Fig 1: Identifying Transmission Fluid Temperature Sensor And Solenoid Connectors
      G06140695Courtesy of FORD MOTOR CO.
  3. NOTE: The O-ring seal must be installed in the top slot.

    Install a new solenoid body transmission internal harness connector O-ring seal and lubricate it with automatic transmission fluid.

    Fig 2: Locating Transmission Internal Harness Connector O-Ring Seal
    G06140696Courtesy of FORD MOTOR CO.
  4. Install the solenoid body assembly. For additional information, refer to SOLENOID BODY ASSEMBLY .
