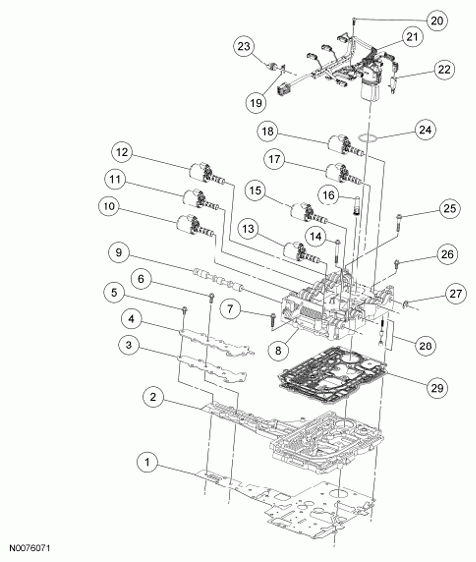

Upper, Lower, Accumulator & Solenoid Body, Disassembled View
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C155 | Solenoid body-to-case gasket |
| 2 | - | Ditch plate |
| 3 | 7H038 | Backing plate gasket |
| 4 | - | Backing plate |
| 5 | W300512 | Backing plate-to-manifold bolt |
| 6 | W500100-S300 | Backing plate-to-case bolt |
| 7 | N805326-S | Solenoid-to-case bolt |
| 8 | - | Manifold body |
| 9 | 7D376 | Manual valve |
| 10 | 7J136 | Low reverse clutch Shift Solenoid Pressure Control E (SSPCE) |
| 11 | 7J136 | Direct clutch Shift Solenoid Pressure Control D (SSPCD) |
| 12 | 7J136 | Intermediate clutch Shift Solenoid Pressure Control C (SSPCC) |
| 13 | 7J136 | Coast clutch Shift Solenoid Pressure Control A (SSPCA) |
| 14 | W708500-S300 | Solenoid-to-case bolt |
| 15 | 7J136 | Overdrive (O/D) clutch Shift Solenoid Pressure Control B (SSPCB) |
| 16 | - | Line pressure relief valve |
| 17 | 7J136 | Torque Converter Clutch (TCC) solenoid |
| 18 | 7G383 | Pressure Control Solenoid A (PCA) |
| 19 | 7E335 | Pressure switch retaining W clip |
| 20 | - | Wiring harness retaining bolt |
| 21 | 7G276 | Wiring harness |
| 22 | 7H141 | Transmission Fluid Temperature (TFT) sensor |
| 23 | 7E440 | Direct clutch bore plug |
| 24 | 7Z276 | Bulkhead connector O-ring seal |
| 25 | W300511 | Manifold-to-ditch plate bolt |
| 26 | W300513 | Manifold-to-ditch plate bolt |
| 27 | 7J137 | Shift solenoid retaining E clip |
| 28 | - | Line Pressure Control (LPC) pressure relief valve |
| 29 | 7H200 | Filter plate gasket |
