Solenoid Body Assembly: Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install a new backing plate gasket, the backing plate and backing plate bolts.
- Tighten to 13 Nm (115 lb-in).

  Fig 1: Locating Backing Plate-To-Case Bolts
  Courtesy of FORD MOTOR CO.
Install a new backing plate gasket.

Fig 2: Locating Backing Plate Gasket
Courtesy of FORD MOTOR CO.
NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

Assemble the top and bottom halves of the solenoid body.
- Tighten to 13 Nm (115 lb-in).

  Fig 3: Locating Main Control Valve Body Bolts
  Courtesy of FORD MOTOR CO.
Install the TFT sensor.

Fig 4: Locating Transmission Fluid Temperature Sensor
Courtesy of FORD MOTOR CO.
Install the shift solenoids and the shift solenoid retaining E clips.

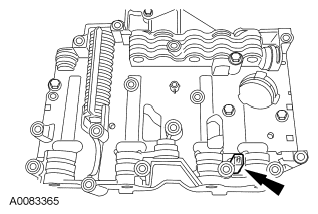

Fig 5: Locating Shift Solenoid Retaining E Clips
Courtesy of FORD MOTOR CO.
Install a new O-ring seal on the bulkhead connector in the uppermost groove. Lubricate the O-ring seal with transmission fluid.

Fig 6: Locating Solenoid Body Electrical Connector O-Ring Seal
Courtesy of FORD MOTOR CO.
Install the main control valve body wiring harness and connect the connectors.

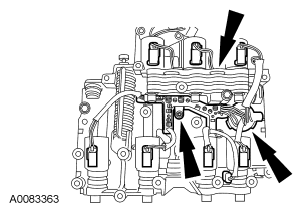

Fig 7: Locating Solenoid Body Wiring Harness Electrical Connectors And Bolts
Courtesy of FORD MOTOR CO.
Install the manual valve.

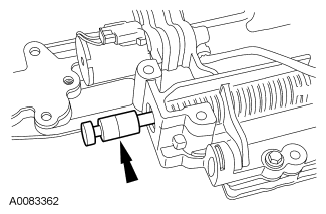

Fig 8: Locating Manual Valve
Courtesy of FORD MOTOR CO.
