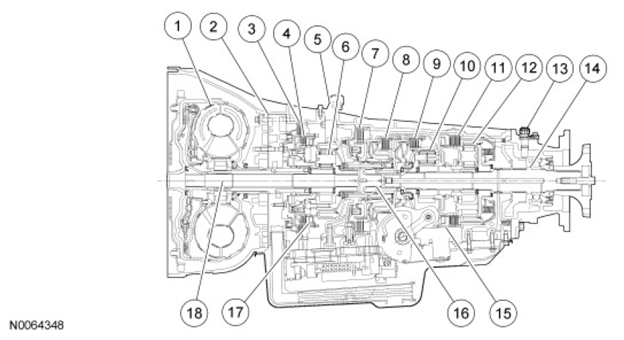

Automatic Transmission - Sectional View
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | 7A103 | Pump assembly |
| 3 | - | Overdrive (O/D) clutch assembly |
| 4 | - | Coast clutch assembly |
| 5 | 7M101 | Turbine Shaft Speed (TSS) intermediate shaft speed sensor |
| 6 | 7B446 | O/D planet assembly |
| 7 | - | Intermediate clutch assembly |
| 8 | 7C108 | Direct clutch assembly |
| 9 | 7A511 | Forward clutch assembly |
| 10 | 7A398 | Forward planet assembly |
| 11 | - | Reverse clutch assembly |
| 12 | 7D006 | Reverse planet assembly |
| 13 | 7H103 | Output Shaft Speed (OSS) sensor |
| 14 | 7060 | Output shaft assembly |
| 15 | 7A089 | Low/reverse rocker One-Way Clutch (OWC) |
| 16 | 7A658 | Center shaft assembly |
| 17 | 7A089 | Coast mechanical diode OWC |
| 18 | 7017 | Input shaft |
