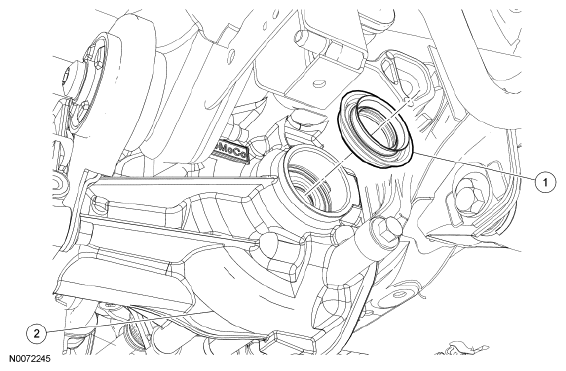

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
4B416 |
Stud shaft seal |
307-309 T94P-77001-BH, 100-001 T50T-100-A, 205-350 T95T-3010-A, 205-153 T80T-4000-W |
- |
- |
| 2 |
4000 |
Differential housing assembly |
- |
- |
- |
