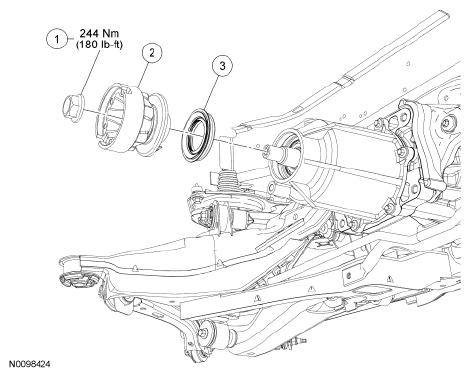

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
4320 |
Pinion nut |
205-126 T78P-4851-A |
- |
244 Nm (180 lb-ft) |
| 2 |
4851 |
Pinion flange |
205-D072 D97L-4221-A |
- |
- |
| 3 |
4N046 |
Pinion seal |
307-309 T94P-77001-BH, 100-001 T50T-100-A, 205-133 T79P-4676-A |
- |
- |
