In-Vehicle Crossbeam: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
  1. Rotate the steering wheel until the front wheels are in the straight-ahead position.
  2. Drain the coolant. COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  3. Recover the refrigerant. If equipped with DATC  , refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING . If equipped with EMTC  , refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  4. Remove the wiper arms. WIPER AND WASHER SYSTEM -- EXPLODED VIEW .
  5. Remove the cowl panel grille. COWL PANEL GRILLE .
  6. Disconnect the 3 PCM  electrical connectors and position the harness aside.
    1. Detach the PCM harness retainer.
      G07429274
  7. Remove the 2 PCM  nuts and remove the PCM  .
    1. To install, tighten to 8 Nm (71 lb-in).
      G07429312
  8. NOTE: LH side shown in illustration, RH side similar.

    Remove the strut tower cross brace.

    1. To install, tighten to 55 Nm (41 lb-ft).
      G07429276
  9. Remove the heater hoses from the heater core and position aside.
    G07429277
  10. Remove the TXV  manifold fastener and the manifold.
    1. Discard the O-ring seals.
    2. To install, tighten to 8 Nm (71 lb-in).
  11. Remove the LH and RH instrument panel-to-front of dash bolts.
    1. To install, tighten to 25 Nm (18 lb-ft).
      G07429278
  12. Remove both front seats. SEAT SYSTEM - SEATS-SEATING - 1ST ROW .
  13. Remove the instrument panel upper section. Refer to INSTRUMENT PANEL UPPER SECTION .

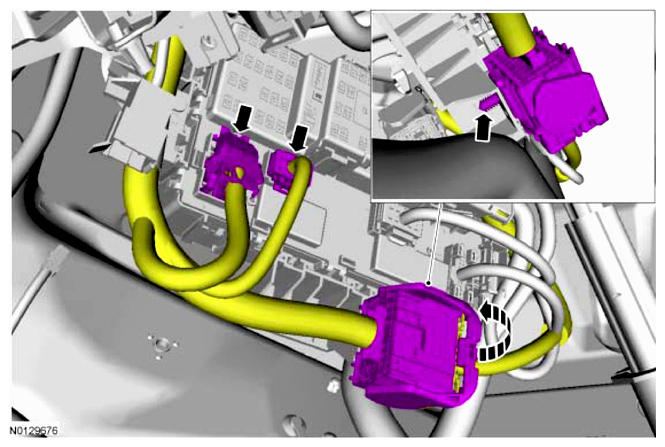

  14. Disconnect the LH instrument panel bulkhead electrical connector and the 2 lower SJB  electrical connectors.
    1. Detach the instrument panel bulkhead electrical connector push pin from the SJB  .
      G09091337
  15. Remove the drivers foot rest pad.
    G07429287
  16. Detach the retainers and remove the LH and RH front floor carpet sections.
    G07429288
  17. Disconnect the lower LH cowl bulkhead electrical connector.
    G07429289
  18. If equipped, detach the 2 retainers and remove the rear foot well duct.
    G07429290
  19. Disconnect the RH bulkhead electrical connector and the antenna cable connector.
    1. Release the antenna connector from the main harness.
      G07429291
  20. Remove the 2 bolts and the ground wires.
    1. To install, tighten to 10 Nm (89 lb-in).
      G07429292
  21. Disconnect the RCM  small electrical connector.
    1. Detach the 3 wiring harness retainers.
      G07429293
  22. NOTE: RH side shown in illustration, LH side similar.

    Remove the 4 instrument panel center support bracket bolts.

    1. To install, tighten to 25 Nm (18 lb-ft).
      G07429294

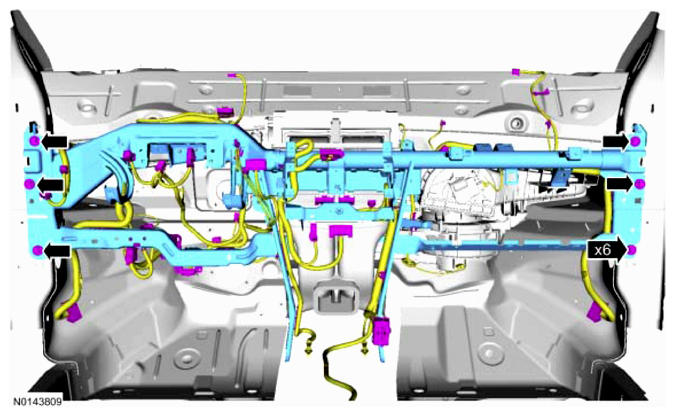

  23. NOTE: To avoid damaging the in-vehicle cross beam, an assistant is required when carrying out the following steps.
    NOTE: RH side shown in illustration, LH side similar.
    NOTE: Remove the bolts from one side completely and support the in-vehicle cross beam before removing the bolts from the opposite side.

    Remove the 3 LH and the 3 RH instrument panel side bolts.

    1. To install, tighten to 40 Nm (30 lb-ft).
      G09091346
  24. NOTE: Make sure not to damage the RH front door trim panel or the in-vehicle cross beam when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the in-vehicle cross beam or damage to the components may occur.

    Remove the in-vehicle cross beam from the vehicle.

    1. Rotate the in-vehicle cross beam face down and remove through the RH front door opening.
