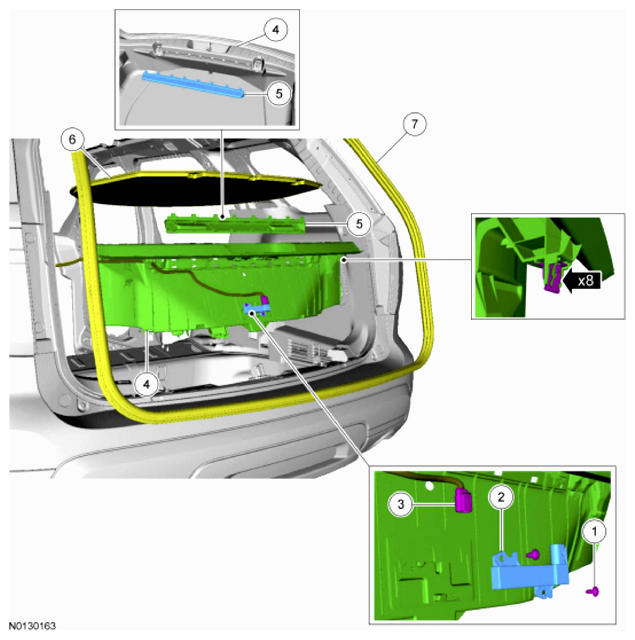

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description |
|---|---|---|
| 1 | W790141 | Passive start antenna screw (2 required) |
| 2 | 19D596 | Passive start antenna |
| 3 | - | Passive start antenna electrical connector (part of 14B079) |
| 4 | 7842624 | Rear floor trim panel |
| 5 | 7845726 | Rear floor trim panel filler |
| 6 | 7845026 | Spare wheel cover |
| 7 | 78404A06 | Liftgate weatherstrip |
