Passive Start Antenna - Center: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

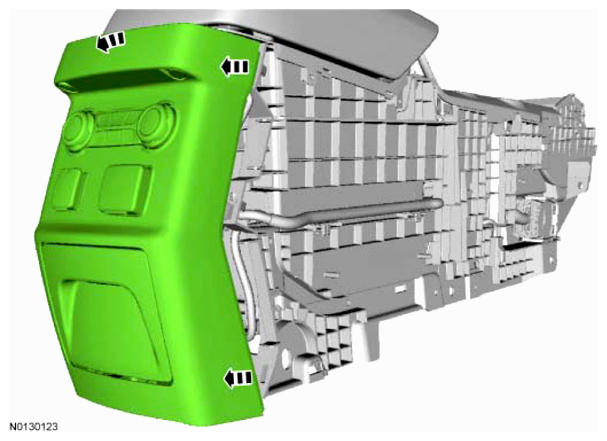

  1. Release the clips and position the floor counsel rear trim panel aside.
    G09090654
  2. Remove 2 center passive start antenna nuts.
    1. To install, tighten to 5 Nm (44 lb-in).
  3. Disconnect the center passive start antenna electrical connector and remove the center passive start antenna.
