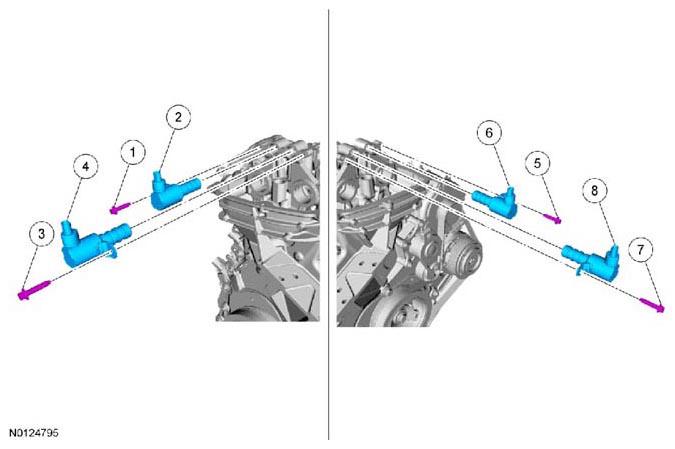

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W500215 | RH exhaust VCT oil control solenoid bolt | - | - | - |
| 2 | 6M280 | RH exhaust VCT oil control solenoid | - | - | - |
| 3 | W500215 | RH intake VCT oil control solenoid bolt | - | - | - |
| 4 | 6M280 | RH intake VCT oil control solenoid | - | - | - |
| 5 | W500215 | LH exhaust VCT oil control solenoid bolt | - | - | - |
| 6 | 6M280 | LH exhaust VCT oil control solenoid | - | - | - |
| 7 | W500215 | LH intake VCT oil control solenoid bolt | - | - | - |
| 8 | 6M280 | LH intake VCT oil control solenoid | - | - | - |
