3.5L Ti-VCT and 3.7L Ti-VCT Engine Sensor Locations

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

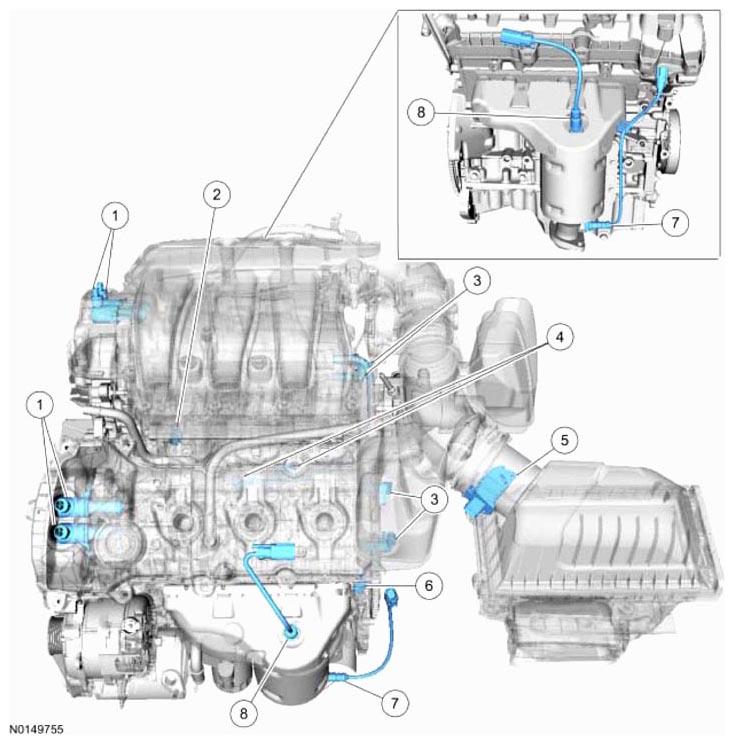

G09087547
Item Part Number Description
1 6M280 VCT  oil control solenoids
2 6G004 CHT  sensor
3 6B288 CMP  sensor
4 12A699 KS
5 12B579 MAF  sensor
6 6C315 CKP  sensor
7 9G444 CMS
8 9F472 HO2S
