3.5L GTDI Engine Sensor Locations - RH

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

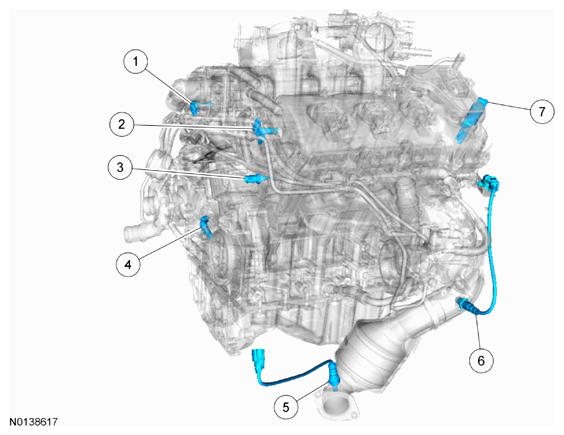

G08660159
Item Description Comments
1 LH CMP  sensor -
2 RH CMP  sensor -
3 CHT  sensor -
4 CKP  sensor -
5 RH CMS  -
6 RH HO2S  -
7 RH VCT  oil control solenoid -
