3.5L GTDI Engine Sensor Locations - LH

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

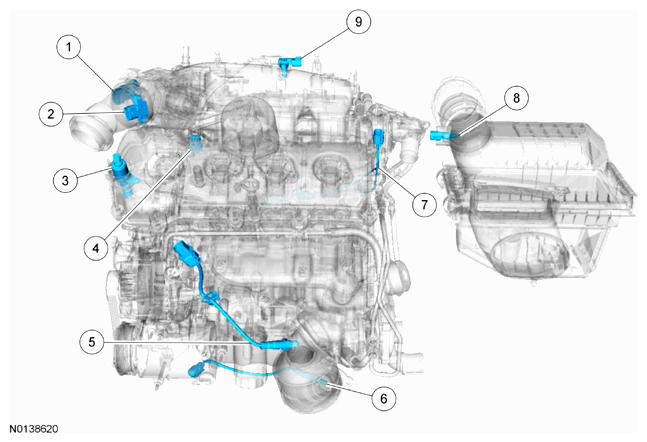

G08660158
Item Description Comments
1 TP  sensor -
2 TCBP/CAC  sensor -
3 LH VCT  oil control solenoid -
4 FRP sensor -
5 LH HO2S  -
6 LH CMS  -
7 KS  -
8 MAF  sensor -
9 MAP  /IAT2 sensor -
