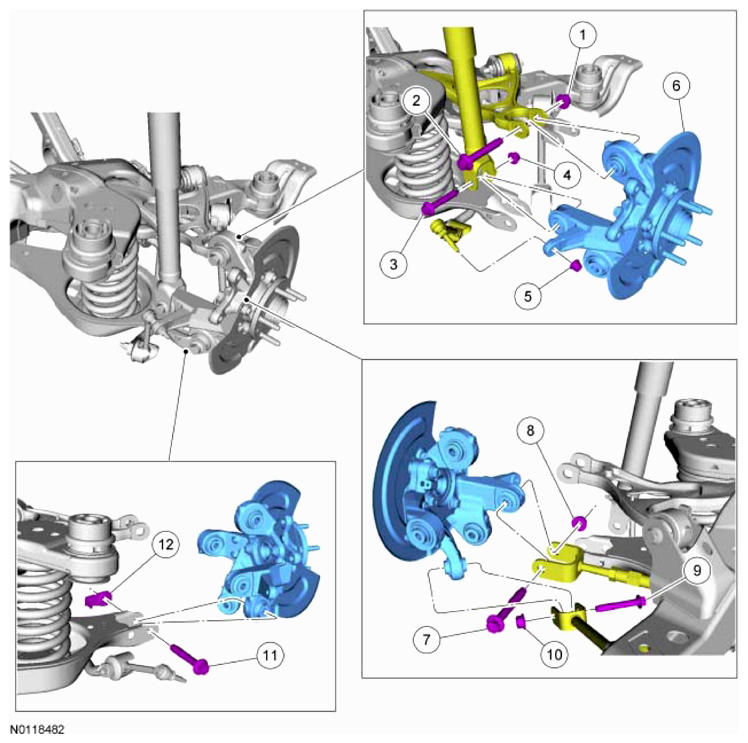

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
W520517 |
Upper arm-to-wheel knuckle nut |
| 2 |
W715127 |
Upper arm-to-wheel knuckle bolt |
| 3 |
W714033 |
Shock absorber lower bolt |
| 4 |
- |
Shock absorber lower nut (part of 18080) |
| 5 |
W520213 |
Stabilizer bar link upper nut |
| 6 |
5B759 LH/5B758 RH |
Wheel knuckle |
| 7 |
W715419 |
Toe link-to-wheel knuckle bolt |
| 8 |
W520516 |
Toe link-to-wheel knuckle nut |
| 9 |
W715419 |
Trailing arm-to-wheel knuckle bolt |
| 10 |
W520516 |
Trailing arm-to-wheel knuckle nut |
| 11 |
W715127 |
Lower arm-to-wheel knuckle bolt |
| 12 |
W713940 |
Lower arm-to-wheel knuckle nut |
| Item |
Part Number |
Description |

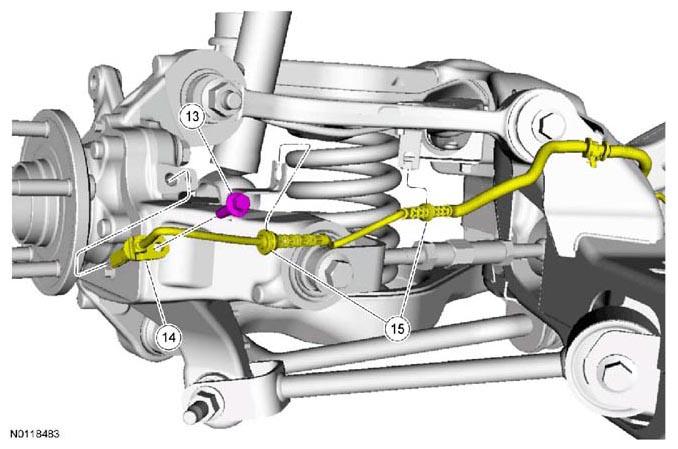

| 13 |
W707722 |
Wheel speed sensor bolt |
| 14 |
2C190 |
Wheel speed sensor |
| 15 |
- |
Wheel speed sensor harness clips (part of 2C190) (2 required) |
