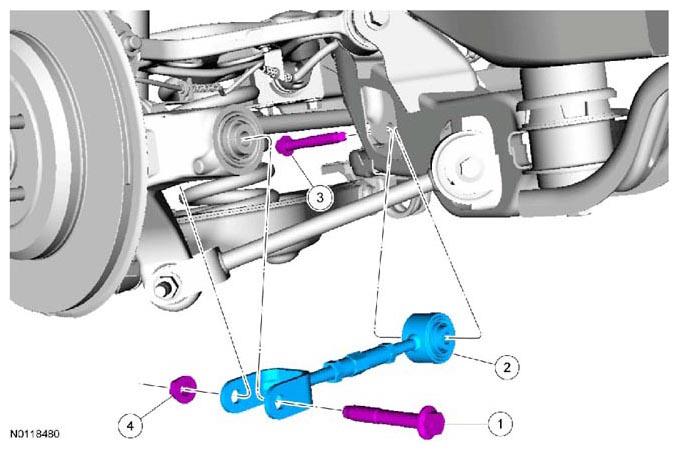

Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Item	Part Number	Description
1	W715419	Toe link-to-wheel knuckle bolt
2	5A972	Toe link
3	W715719	Toe link-to-subframe bolt
4	W520516	Toe link-to-wheel knuckle nut
