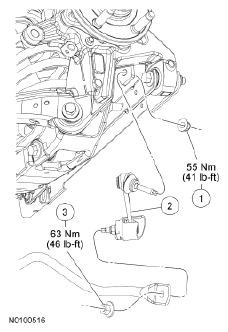

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W520213 |
Stabilizer bar link upper nut |
| 2 |
5D498 LH/5C486 RH |
Stabilizer bar link |
| 3 |
W520213 |
Stabilizer bar link lower nut |
