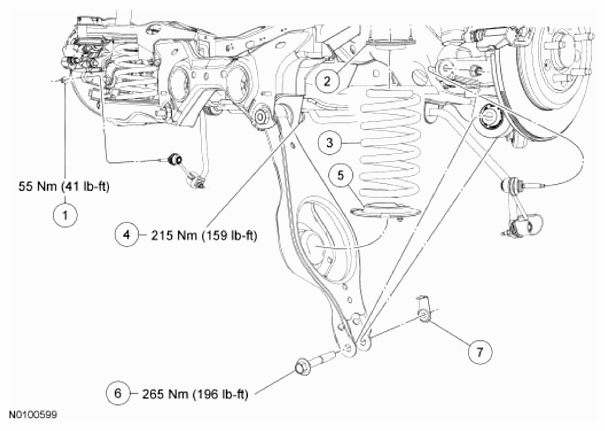

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W520213 |
Stabilizer bar link upper nut (2 required) |
| 2 |
5599 |
Spring upper seat |
| 3 |
5560 |
Spring |
| 4 |
715127 |
Lower arm-to-subframe bolt |
| 5 |
5599 |
Spring lower seat |
| 6 |
W715127 |
Lower arm-to-knuckle bolt |
| 7 |
W713940 |
Lower arm-to-knuckle nut |
