Bumper Cover - Rear: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear fender molding. Refer to FENDER MOLDING -- REAR .
  2. NOTE: LH  side shown in illustration, RH  side similar.

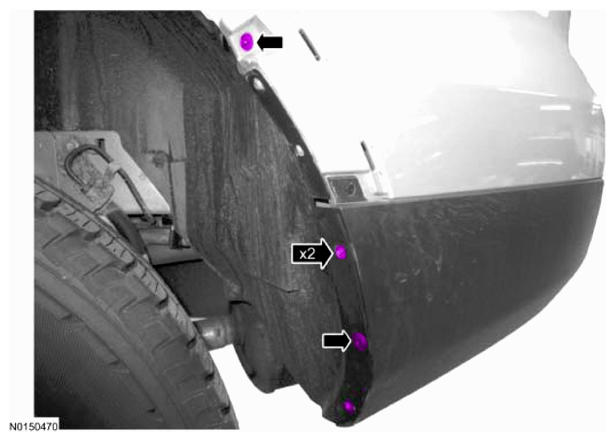

    Remove the 3 screws and the pin-type retainer.

    G09091543
  3. Remove the rear lamp assemblies. Refer to REAR LAMP ASSEMBLY .
  4. NOTE: LH  side shown in illustration, RH  side similar.

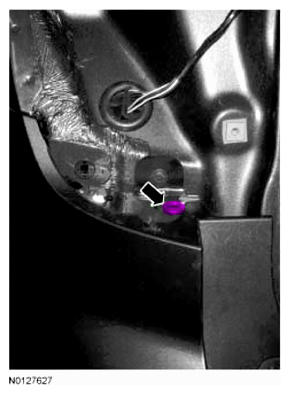

    Remove the 2 bumper cover pin-type retainers located in the rear lamp openings.

    G09091544
  5. NOTE: LH  side shown in illustration, RH  side similar.

    Remove the 2 bumper cover pin-type retainers along the top of the bumper cover.

    G09091545
  6. Remove the 2 lower bumper cover screws.
    G09091546
  7. Disconnect the backup sensor electrical connector and remove the pin-type retainers.
    G09091547
  8. Remove the bumper cover.
