Removal And Installation: Spotlamp: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.

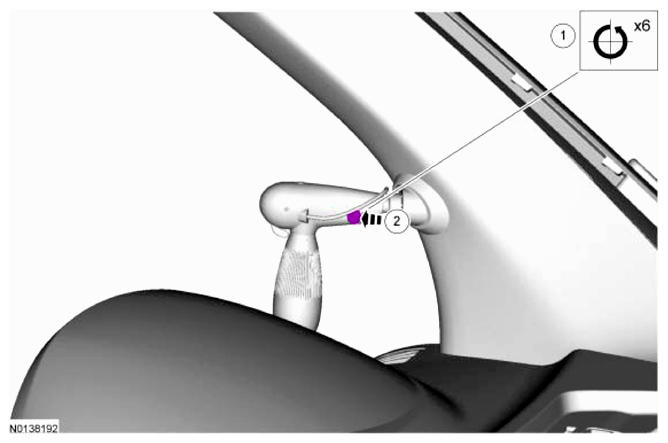

  1. NOTE: Push the loosened screw to release the wedge nut.
    • 7 Nm (62 lb-in)
      G09084503

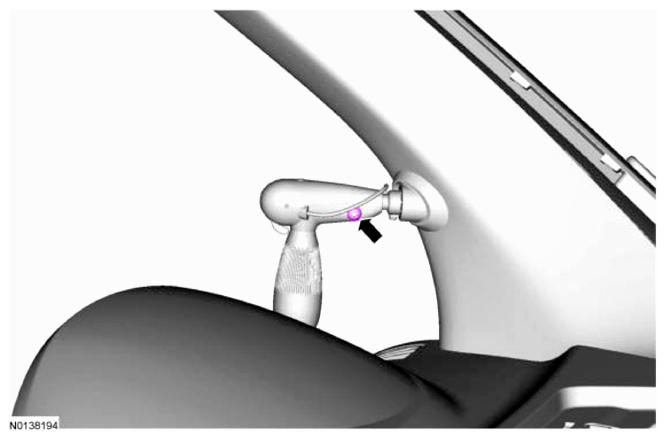

  2. G09084504

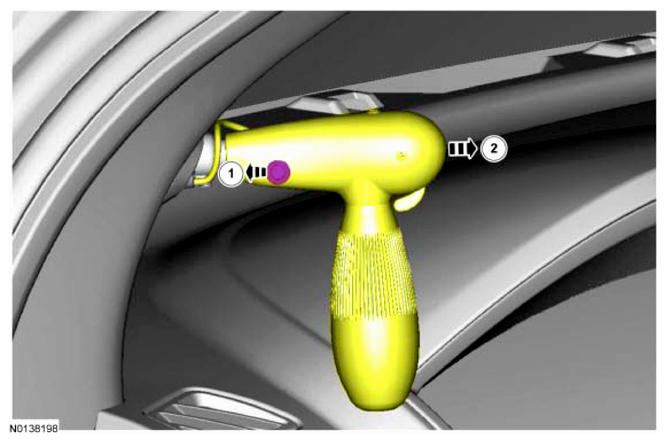

  3. NOTE: To install, make sure the wedge nut aligns with the keyway on the spotlamp shaft.
    G09084505

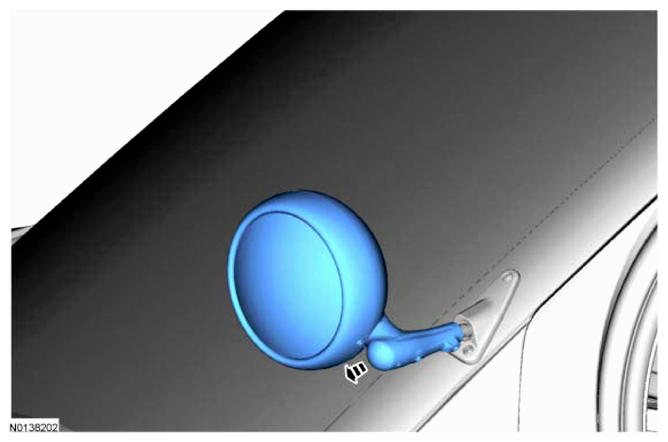

  4. G09084506

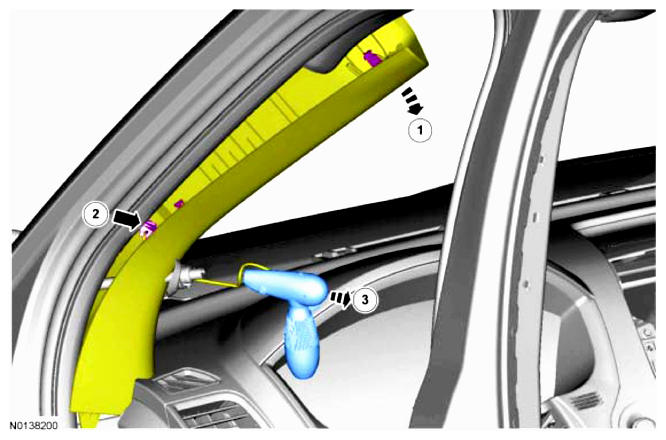

  5. G09084507

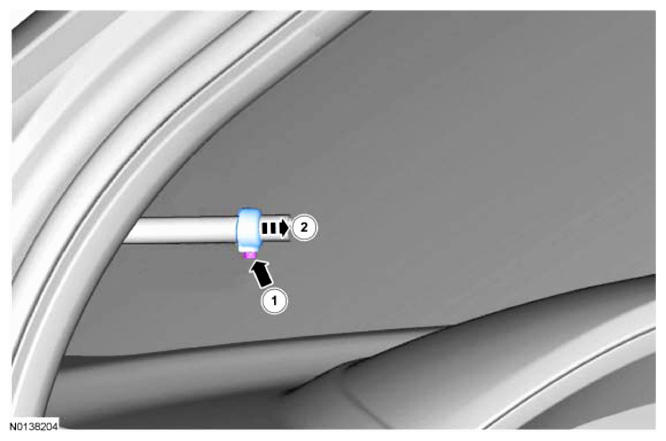

  6. To install, tighten the set screw so there is a slight drag on the spotlamp shaft.
    G09084508

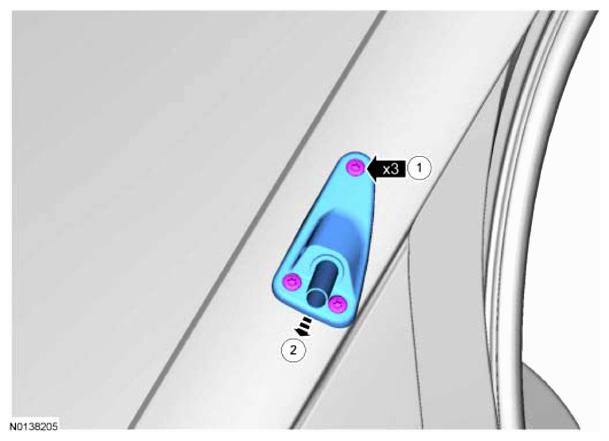

  7. G09084509
