Roof Opening Panel Control Switch: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. REFER to CONSOLE - OVERHEAD .
Remove the light assembly from the overhead console.
- Release the 2 rear tabs and rotate the light assembly slightly away from the overhead console.
- Release the 2 front tabs and remove the light assembly from the overhead console.

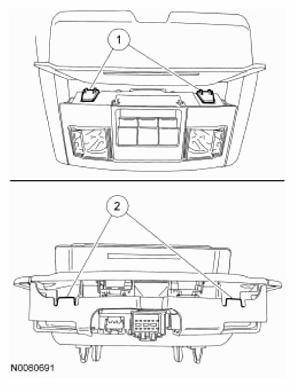

  Fig 1: Identifying Overhead Console Tabs
  Courtesy of FORD MOTOR CO.
Disengage the 4 tabs and remove the switch from the light assembly.

Fig 2: Locating Light Assembly Tabs
Courtesy of FORD MOTOR CO.
Disengage the 2 tabs and remove the switch bezel from the switch.

Fig 3: Locating Switch Bezel Tabs
Courtesy of FORD MOTOR CO.
