Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Verify that the fuel injector-to-valve cover seal is squarely seated in the valve cover.

    Using a 22 mm (0.866 in) socket or equivalent, install the new fuel injector-to-valve cover seal.

    Fig 1: Locating Fuel Injector-To-Valve Cover Seal
    G08593141Courtesy of FORD MOTOR CO.
  2. NOTE: Failure to install the fuel injectors during the valve cover installation may result in engine failure.
    NOTE: The valve cover will have to be tightened a second time after the fuel injectors are installed.

    Using a new valve cover gasket, install the RH valve cover, 2 stud bolts and 16 bolts. Tighten in the sequence shown in the illustration.

    • Tighten to 12 Nm (106 lb-in).
      Fig 2: Identifying RH Valve Cover Bolts Tightening Sequence
      G08593142Courtesy of FORD MOTOR CO.

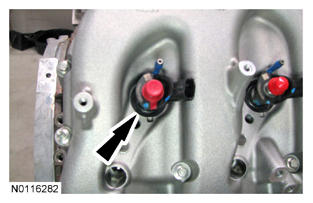

  3. NOTE: Do not apply engine oil to the fuel injectors.
    NOTE: Only one fuel injector shown.
    NOTE: If the fuel injector is being reused, make sure to install it in the original location.

    Install a new copper combustion gasket, O-ring seal and fuel injector return fuel O-ring on the 4 fuel injectors.

    • Position the 4 fuel injectors into the engine.
      G08593143

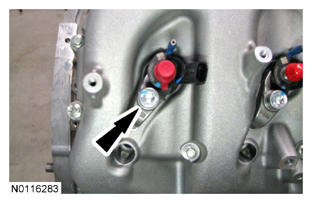

  4. NOTE: Failure to tighten the fuel injector correctly can lead to engine failure.
    NOTE: Apply clean engine oil to the concave surface of the fuel injector hold-down clamp.

    Install the 4 fuel injector hold-down clamps and the 4 new fuel injector bolts. Tighten in 2 stages.

    • Stage 1: Tighten to 30 Nm (22 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.
      G08593144
  5. Final tighten the valve cover bolts in the sequence shown in the illustration.
    • Tighten to 12 Nm (106 lb-in).
      Fig 3: Identifying RH Valve Cover Bolts Tightening Sequence
      G08593145Courtesy of FORD MOTOR CO.

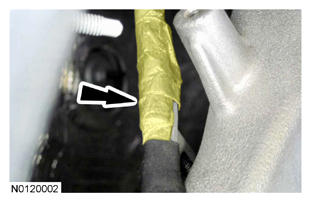

  6. Connect the wire retainer to the rear valve cover stud bolt.
    G08593146

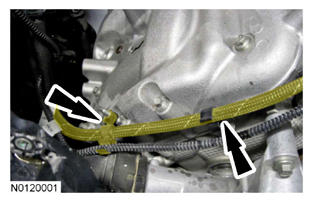

  7. Connect the fuel return hose to the retainer and the retainer to the stud bolt.
    G08593147

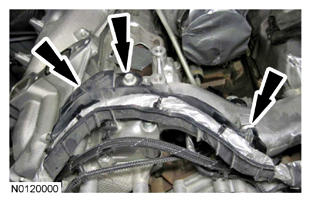

  8. Position the engine wire harness and connect the 2 harness retainers. Install the bolt.
    • Tighten to 12 Nm (106 lb-in).
      Fig 4: Locating Engine Wire Harness Retainer And Mounting Bolts
      G08593148Courtesy of FORD MOTOR CO.
  9. Install the RH glow plugs. For additional information, refer to GLOW PLUG SYSTEM - 6.7L DIESEL .
  10. Install the RH fuel rail and RH fuel injectors, fuel rail supply tube. For additional information, refer to FUEL CHARGING AND CONTROLS - 6.7L DIESEL .
  11. Install the EGR cooler. For additional information, refer to ENGINE EMISSION CONTROL .
