Valve Cover - LH: Removal
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the crankcase vent oil separator. For additional information, refer to ENGINE EMISSION CONTROL .
- Remove the LH fuel injectors, fuel rail supply tube and LH fuel rail. For additional information, refer to FUEL CHARGING AND CONTROLS - 6.7L DIESEL .
- Remove the LH glow plugs. For additional information, refer to GLOW PLUG SYSTEM - 6.7L DIESEL .
-

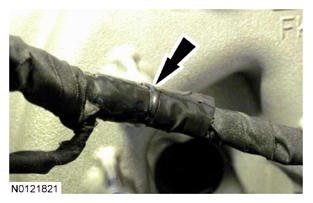

NOTE: Only 1 retainer shown.
Disconnect the 2 wire retainers for the fuel injection harness.

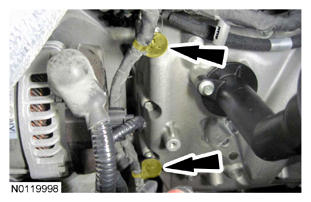

- Disconnect the 2 wire retainers from the valve cover stud bolts.

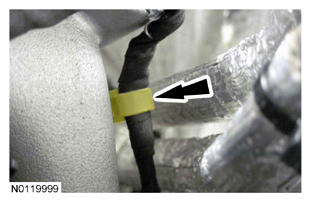

- Disconnect the wire retainer from the rear valve cover stud bolt.
-
NOTE: It will be necessary to position aside the oil level indicator tube in order to remove the valve cover.NOTE: Mark the location of the fasteners prior to removing the valve cover.
Remove the 15 bolts, 3 stud bolts and the LH valve cover.
- Remove and discard the valve cover gasket.
-
NOTE: Use the notch in the valve cover to aid in removing the fuel injector-to-valve cover seal.
Remove the fuel injector-to-valve cover seal out of the valve cover using a screw driver.
