Oil Pump Screen and Pickup Tube: Material

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Item Specification
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil (US); Motorcraft® SAE 10W-30 Super Duty Motor Oil (Canada)
XO-10W30-QSD (US); CXO-10W30-LSD12 (Canada)		 WSS-M2C171-E

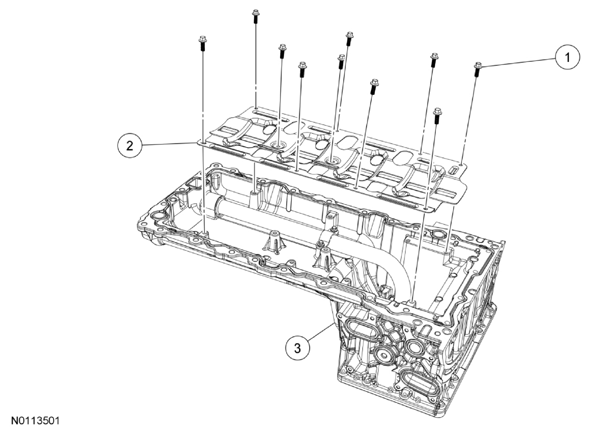

Fig 1: Identifying Upper Oil Pan, Baffle And Bolts
G08593244Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500813 Oil pan baffle bolt (10 required)
2 - Oil pan baffle (part of 6675)
3 6675 Upper oil pan

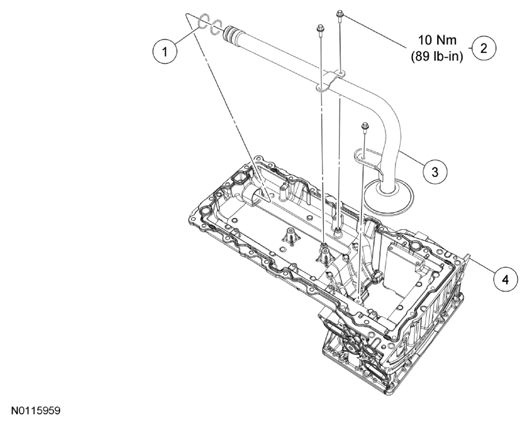

Fig 2: Upper Oil Pan, O-Ring Seal, Oil Pump Screen, Pickup Tube And Bolt With Torque Specifications
G08593245Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6626 O-ring seal (2 required)
2 W503274 Oil pump screen and pickup tube bolt (3 required)
3 6615 Oil pump screen and pickup tube
4 6675 Upper oil pan
