Oil Pump Screen and Pickup Tube: Installation
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Apply clean engine oil to the O-ring seals prior to installing the oil pump screen and pickup tube.
Using new O-ring seals, install the oil pump screen and pickup tube and 3 bolts.
- Tighten to 10 Nm (89 lb-in).

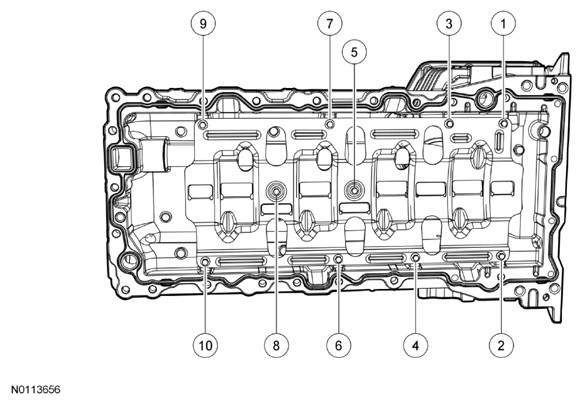

- Install the oil pan baffle and 10 bolts. Tighten in the sequence shown in the illustration.
- Tighten to 10 Nm (89 lb-in).
- Install the upper oil pan. For additional information, refer to OIL PAN - UPPER .
