Engine Wire Harness
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

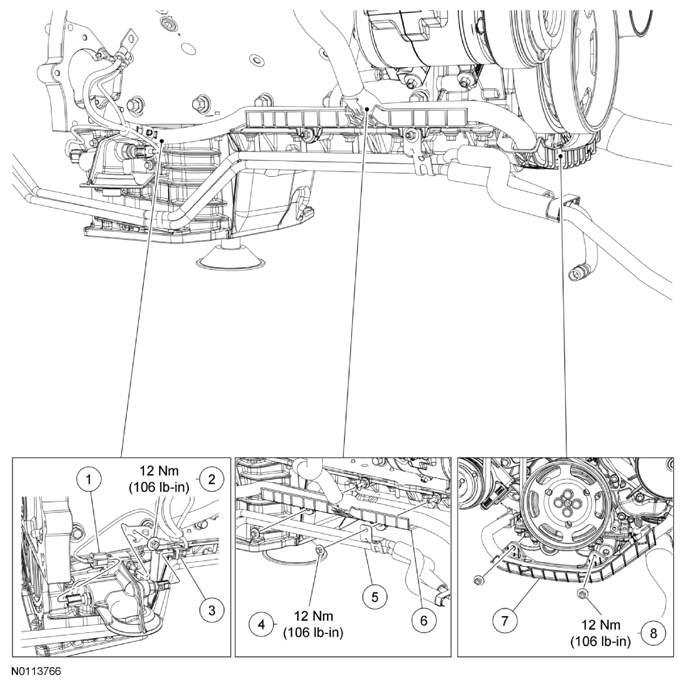

Fig 1: EOT And EOP Sensor Electrical Connector, Transmission Cooler Tubes And Engine Wire Harness Nut With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine Oil Temperature (EOT) sensor electrical connector (part of 14300) |
| 2 | W701694 | Engine wire harness nut |
| 3 | - | Engine Oil Pressure (EOP) switch electrical connector (part of 14300) |
| 4 | W701694 | Engine wire harness nut (2 required) |
| 5 | 7R081 | Transmission cooler tubes |
| 6 | - | Engine wire harness (part of 14300) |
| 7 | - | Engine wire harness (part of 14300) |
| 8 | W701694 | Engine wire harness nut (2 required) |
