Oil Cooler Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

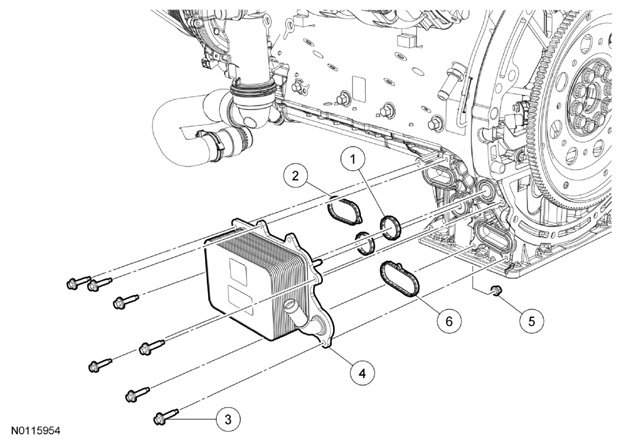

Fig 1: Exploded View Of Oil Cooler Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6L621	Oil cooler gasket (2 required)
2	6L621	Oil cooler gasket
3	W503276	Oil cooler bolt (7 required)
4	6A642	Oil cooler assembly
5	W520102	Oil cooler nut (early build only)
6	6L621	Oil cooler gasket
