Intake Manifold - Lower: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

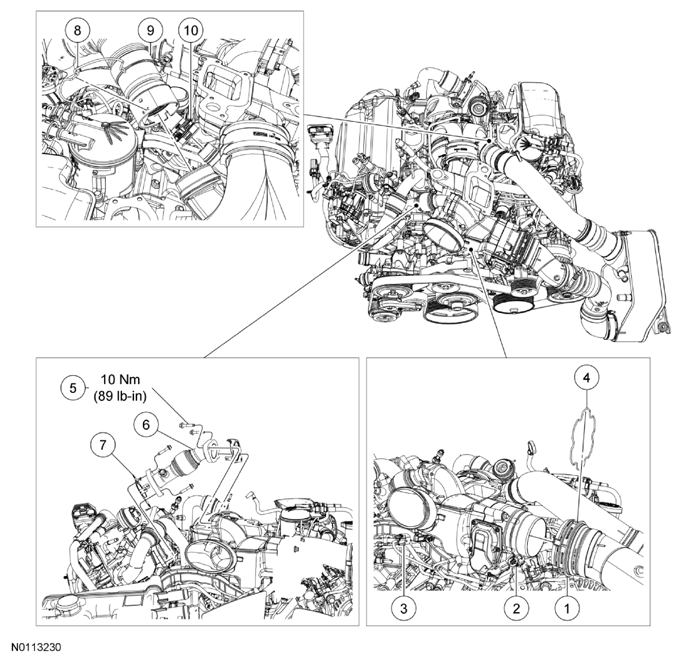

| Item |
Part Number |
Description |
| 1 |
6F073 |
Charge Air Cooler (CAC) outlet tube |
| 2 |
- |
Throttle Body (TB) electrical connector (part of 12B637) |
| 3 |
- |
EGRT sensor electrical connector (part of 12B637) |
| 4 |
8D365 |
CAC outlet hose clip |
| 5 |
W714852 |
EGR bypass outlet pipe bolt (4 required) |
| 6 |
9H449 |
EGR bypass outlet pipe |
| 7 |
9D463 |
EGR bypass outlet pipe gasket (2 required) |
| 8 |
- |
CAC inlet hose clip (part of 6C646) |
| 9 |
6C646 |
CAC inlet tube |
| 10 |
6K817 |
Crankcase vent hose |
Courtesy of FORD MOTOR CO.

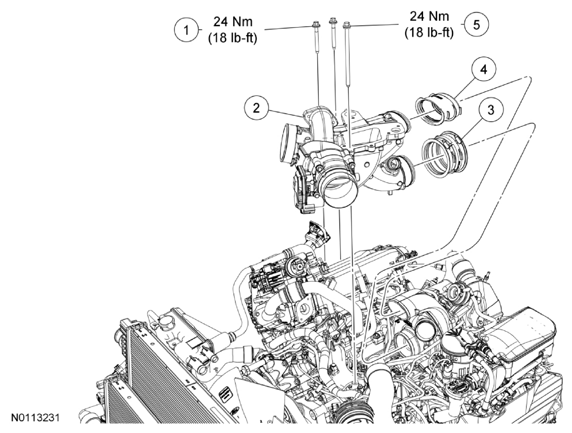

| Item |
Part Number |
Description |
| 1 |
W503303 |
Lower intake manifold bolt (2 required) |
| 2 |
9424 |
Lower intake manifold |
| 3 |
9P432 |
Turbocharger inlet hose (lower) |
| 4 |
9B613 |
Turbocharger inlet hose (upper) |
| 5 |
W701584 |
Lower intake manifold bolt |
