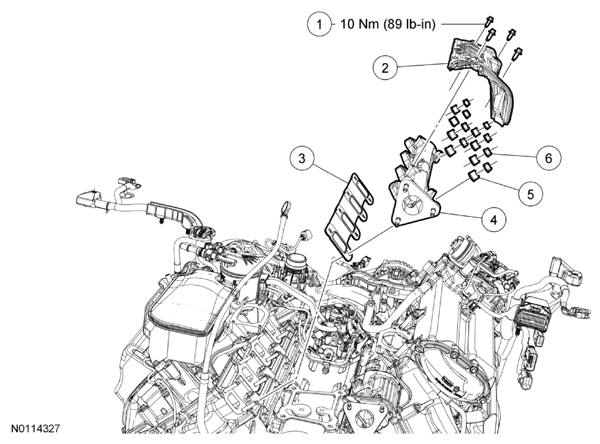

Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W713535 |
Exhaust manifold heat shield bolt (4 required) |
| 2 |
9Y427 |
Exhaust manifold heat shield |
| 3 |
9448 |
Exhaust manifold gasket |
| 4 |
9430 |
Exhaust manifold |
| 5 |
9A432 |
Exhaust manifold spacer (8 required) |
| 6 |
W701706 |
Exhaust manifold nut (8 required) |
