Special Tool(s)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| 4, 400# Floor Crane, Fold Away 300-OTC1820E or equivalent |
|
| Removal Bracket, Engine 303-1518 |
| Item | Part Number | Description |
|---|---|---|
| 1 | 6038 | RH engine support insulator |
| 2 | W790018 | Engine support insulator stud (2 required) |
| 3 | W709771 | Engine support insulator nut (4 required) |
| 4 | W715106 | Engine support insulator cross bolt |

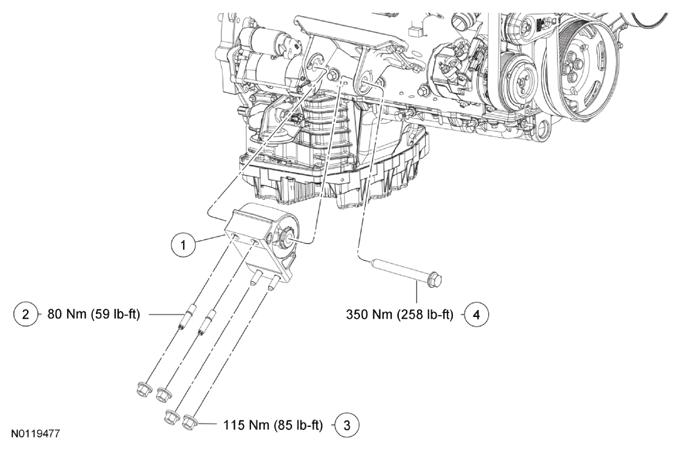

| Item | Part Number | Description |
|---|---|---|
| 1 | 6038 | LH engine support insulator |
| 2 | W711336 | Engine support insulator nut (3 required) |
| 3 | W715106 | Engine support insulator cross bolt |
